SKF

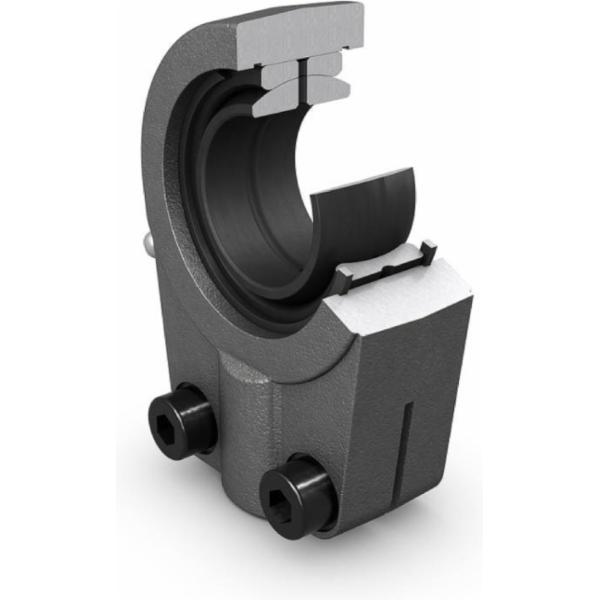

SKF SIR 80 ES Rod head with female thread 80 mm, M 80x2

This article is not available

Product description:

  • Rod head with female thread
  • Especially for hydraulic cylinders
  • Steel/steel
Key features according to our expert
  • Inner diameter: 80 mm
  • Connection type: Inner thread
  • Thread type: Metric fine
  • Seal (bearing): Without seal
  • Maintenance free: Nein
  • Connection size: M80 x 2
Specifications / All features
  • Brand: SKF
  • EAN: 7316577003690
  • Supplier number: SKF SIR 80 ES
Inner diameter
80 mm
Connection type
Inner thread
Thread type
Metric fine
Seal (bearing)
Without seal
Maintenance free
Nein
Connection size
M80 x 2
Maintenance
Relubrication required
Thread designation
M 80x2
Attachment feature, rod end shank
Right-hand female thread and clamping screws
Material, outer ring
Bearing steel
Centre height, housing (from end of shank)
170 mm
Outside diameter, housing eye
178.5 mm
Bore diameter, bearing inner ring
80 mm
Basic static load rating
560 kN
Material, housing
Steel
Sealing
Without
Material, inner ring
Bearing steel
Width, bearing inner ring
55 mm
Sliding contact surface combination
Steel/steel, standard
Width, housing eye
60.5 mm
Basic dynamic load rating
400 kN
Housing length, total
267.5 mm
