SKF SC 20 ES rod head with welding neck 20 mm

Supplier number: SKF SC 20 ES | EAN 7316577023193

Recommended Retail Price €184.34

91.20 tax incl.

€75.37 excl. VAT (incl. all environmental contributions)

On order: delivered from 12/10/2026

Ordered before 20:00 - delivered as of 12/10/2026
Shipping costs €6.99 VAT included | Free shipping for orders over a total amount of 125 euros
Delivery by DHL

↓ Documents (1) ✆ Talk to a specialist

Product information

€91.20

tax incl.

Key features according to our expert

Inner diameter: 20 mm
Sealing (bearing): Without seals
Maintenance free: Nein
Thread type: Not applicable

Product description

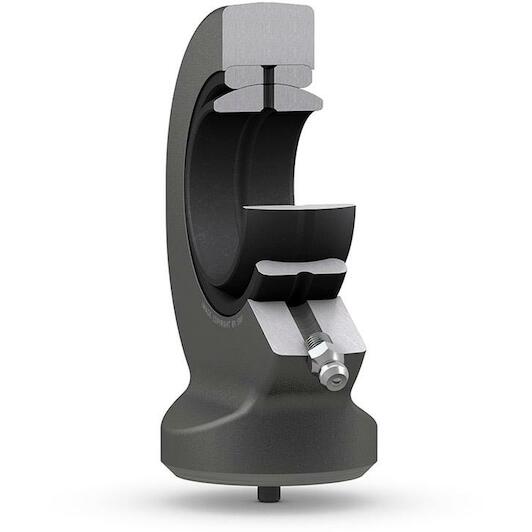

These SKF rod ends contain a spherical plain bearing with a steel/steel sliding contact surface combination. The bearing requires maintenance and can be relubricated via a lubrication hole or grease fitting in the housing and via the shaft. The dowel pin eases centring at the cylindrical section welding shank.

Suitable for heavy static, alternating or impact loads
Easy to relubricate
Easy to center

Documents

⤓ Technical data sheet PDF

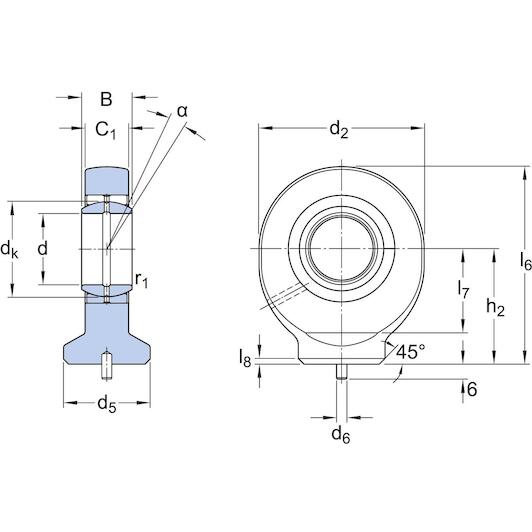

All Features

Inner diameter: 20 mm
Sealing (bearing): Without seals
Maintenance free: Nein
Thread type: Not applicable
Basic static load rating: 46.5
Attachment feature, rod end shank: Cylindrical section, with locating pin, for welding
Material, housing: Steel
Sliding contact surface combination: Steel/steel, standard
Housing length, total: 66
Maintenance: Relubrication required
Material, outer ring: Bearing steel
Outside diameter, housing eye: 54
Bore diameter, bearing inner ring: 20
Width, bearing inner ring: 16
Material, inner ring: Bearing steel
Sealing: Without
Width, housing eye: 13.5
Basic dynamic load rating: 30
Centre height, housing (from end of shank): 38
