SKF SIKB 8 F Rod head with female thread 8 mm, M 8

Supplier number: SKF SIKB 8 F | EAN 7316577003812

Recommended Retail Price €75.47

37.20 tax incl.

€30.74 excl. VAT (incl. all environmental contributions)

On stock - immediately available

Ordered before 20:00 - delivered tomorrow 30/09/2026
Shipping costs €11.99 VAT included | Free shipping for orders over a total amount of 125 euros
Delivery by DHL

↓ Documents (1) ✆ Talk to a specialist

Reliable rod end for smooth angular motion

Practical benefits

Maintenance free spherical bearing: The integrated PTFE composite sliding layer eliminates the need for relubrication and saves you routine service time.
Direct standard connection: Designed with a female metric M8 thread and 8 mm bore, you achieve fast and secure linkage mounting.
Robust Skf industrial construction: The durable steel housing handles heavy static and dynamic mechanical loads for lasting operational reliability.

In a nutshell

The right choise for

With the Skf sikb 8 f rod end, you ensure smooth and reliable mechanical motion in linkages, cylinder couplings, and control systems. Featuring a self-lubricating ptfe sliding contact surface, this rod end operates completely maintenance-free, saving you routine servicing in hard-to-reach areas. The standard metric M8 female thread and 8 mm bore allow for direct, low-backlash mounting into existing assemblies. Its robust construction easily accommodates angular misalignment and handles dynamic mechanical loads, preventing binding and excessive wear in your equipment.

Product information FAQ

€37.20

In stock - tax incl.

Key features according to our expert

Inner diameter: 8 mm
Connection type: Internal thread
Thread type: Metric
Sealing (bearing): Without seals
Maintenance free: Yes
Connection size: M8

Product description

These SKF rod ends have an injection moulded sliding layer of PTFE FRP between the housing and the inner ring. This sliding contact surface combination is maintenance-free. The male thread is available with a left- (prefix SAL) or right-hand thread.

Long service life
Maintenance-free
Relatively insensitive to contaminants
Low coefficient of friction
Simple and ready-to-mount

Documents

⤓ Technical data sheet PDF

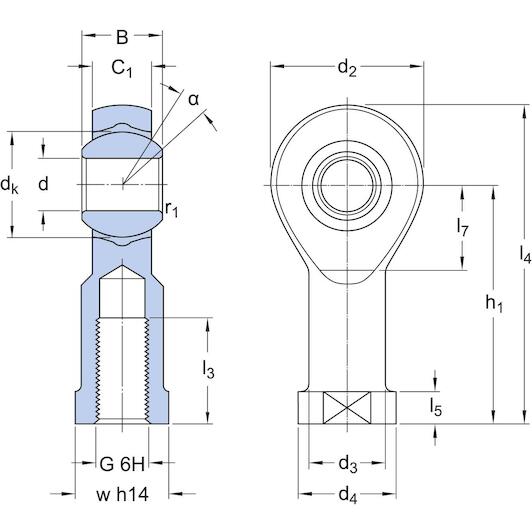

All Features

Inner diameter: 8 mm
Connection type: Internal thread
Thread type: Metric
Sealing (bearing): Without seals
Maintenance free: Yes
Connection size: M8
Basic static load rating: 11.4
Attachment feature, rod end shank: Right-hand female thread
Material, housing: Steel
Sliding contact surface combination: Steel/PTFE FRP
Housing length, total: 50
Maintenance: Maintenance-free
Thread designation: M 8
Outside diameter, housing eye: 25
Bore diameter, bearing inner ring: 8
Sealing: Without
Material, inner ring: Bearing steel
Width, bearing inner ring: 12
Width, housing eye: 9.5
Basic dynamic load rating: 7.1
Centre height, housing (from end of shank): 36

Brand SKF
01390254
EAN 7316577003812
Supplier number SKF SIKB 8 F

Frequently asked questions about this product

Answered by specialists

What thread type does this SKF rod end have?: It features a standard metric M8 right-hand female thread.
What is the bore diameter of the bearing?: The inner ring has a bore diameter of 8 mm.
Does this rod end require lubrication?: No, the steel/PTFE sliding contact combination makes it completely maintenance-free.
Is this rod end sealed?: No, this unit is designed without integrated seals.
What is the SKF SIKB 8 F used for?: It is designed to handle mechanical articulation and transmit forces in linkage systems.
