SKF SIR 30 ES Rod head with female thread 30 mm, M 22x1.5

Supplier number: SKF SIR 30 ES | EAN 7316577003645

Recommended Retail Price €350.14

173.20 tax incl.

€143.14 excl. VAT (incl. all environmental contributions)

On order: delivered from 10/10/2026

Ordered before 20:00 - delivered as of 10/10/2026
Free shipping
Delivery by DHL

↓ Documents (1) ✆ Talk to a specialist

Product information

€173.20

tax incl.

Key features according to our expert

Inner diameter: 30 mm
Connection type: Internal thread
Thread type: Metric fine
Sealing (bearing): Without seals
Maintenance free: Nein
Connection size: M22 x 1,5

Product description

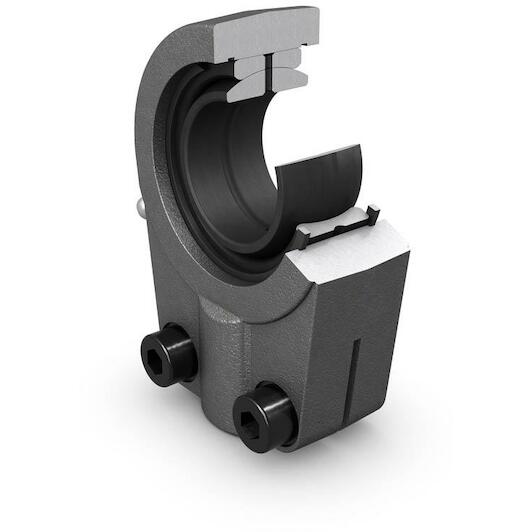

These SKF rod ends contain a spherical plain bearing with a steel/steel sliding contact surface combination. The bearing requires maintenance and can be relubricated via grease fitting in the housing and via the shaft. The female thread is available with a left- (prefix SIL) or right-hand thread.

Easy to relubricate
Suitable for heavy static, alternating or impact loads
Simple and ready-to-mount

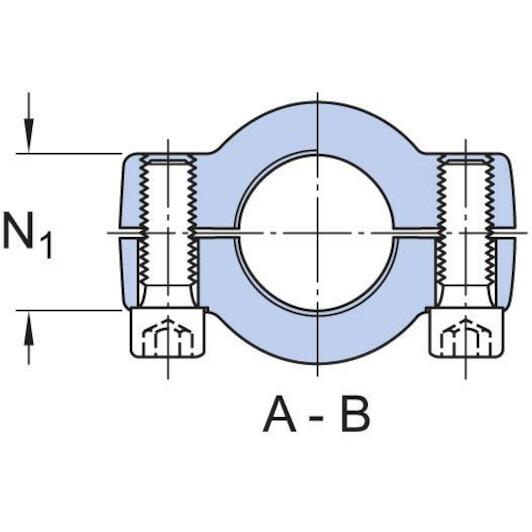

Slotted shank with clamping screws
Suitable for hydraulic cylinders
Bearing can be exchanged

Documents

⤓ Technical data sheet PDF

All Features

Inner diameter: 30 mm
Connection type: Internal thread
Thread type: Metric fine
Sealing (bearing): Without seals
Maintenance free: Nein
Connection size: M22 x 1,5
Bore diameter, bearing inner ring: 30
Attachment feature, rod end shank: Right-hand female thread and clamping screws
Material, housing: Steel
Sliding contact surface combination: Steel/steel, standard
Housing length, total: 95
Maintenance: Relubrication required
Thread designation: M 22x1.5
Material, outer ring: Bearing steel
Outside diameter, housing eye: 66
Sealing: Without
Basic static load rating: 78
Material, inner ring: Bearing steel
Width, bearing inner ring: 22
Width, housing eye: 28.5
Basic dynamic load rating: 62
Centre height, housing (from end of shank): 60
