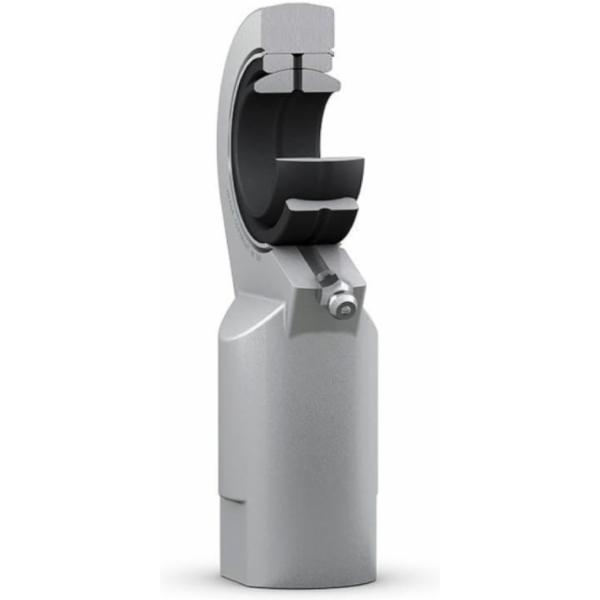

SKF SIA 50 ES-2RS rod head with female thread 50 mm, M 45x3

Show more features

Inner diameter

50 mm

Connection type

Inner thread

Thread type

Metric fine

Seal (bearing)

Double-sided sealed

Maintenance free

Nein

Connection size

M45 x 3

Material, housing

Steel

Thread designation

M 45x3

Attachment feature, rod end shank

Right-hand female thread

Material, outer ring

Bearing steel

Centre height, housing (from end of shank)

160 mm

Sealing type

Double-lip

Outside diameter, housing eye

114 mm

Bore diameter, bearing inner ring

50 mm

Basic static load rating

270 kN

Sealing

Seal on both sides

Maintenance

Relubrication required

Material, inner ring

Bearing steel

Width, bearing inner ring

35 mm

Sliding contact surface combination

Steel/steel, standard

Width, housing eye

31 mm

Basic dynamic load rating

156 kN

Housing length, total

219 mm
