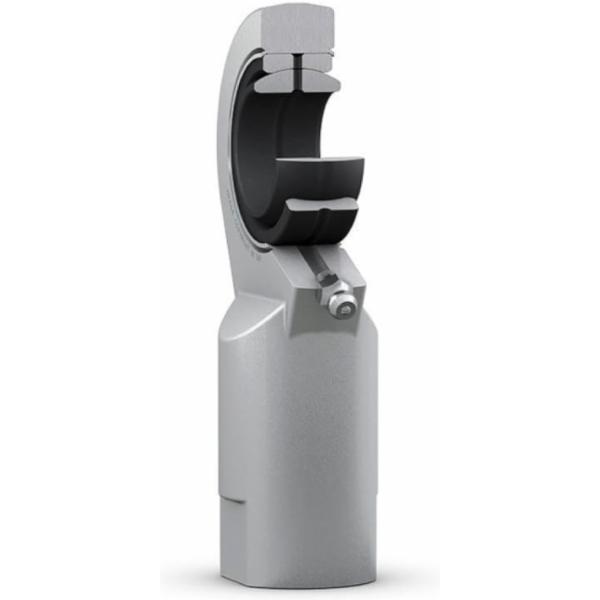

SKF SI 60 ES-2RS rod head with female thread 60 mm, M 60x4

Show more features

Inner diameter

60 mm

Connection type

Inner thread

Thread type

Metric fine

Seal (bearing)

Double-sided sealed

Maintenance free

Nein

Connection size

M60 x 4

Material, housing

Steel

Thread designation

M 60x4

Attachment feature, rod end shank

Right-hand female thread

Material, outer ring

Bearing steel

Centre height, housing (from end of shank)

225 mm

Sealing type

Double-lip

Outside diameter, housing eye

137 mm

Bore diameter, bearing inner ring

60 mm

Basic static load rating

400 kN

Sealing

Seal on both sides

Maintenance

Relubrication required

Material, inner ring

Bearing steel

Width, bearing inner ring

44 mm

Sliding contact surface combination

Steel/steel, standard

Width, housing eye

39 mm

Basic dynamic load rating

245 kN

Housing length, total

296 mm
