Product description:
- Welding shaft
- Steel/steel

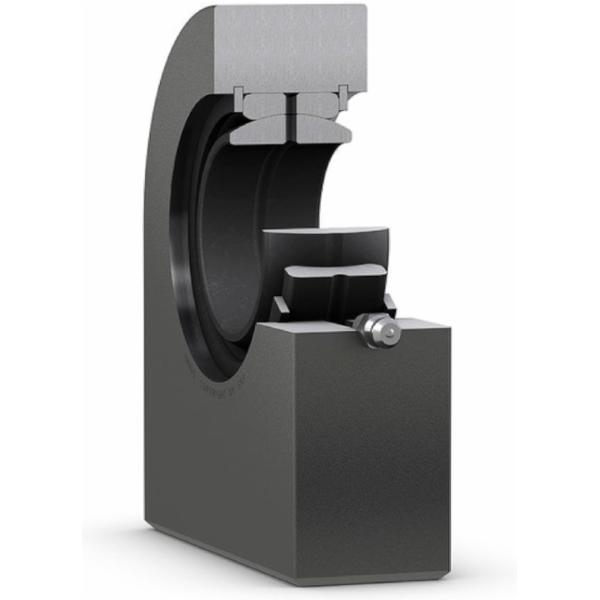

SKF SCF 70 ES rod head with welding neck 70 mm
Key features according to our expert
- Inner diameter: 70 mm
- Seal (bearing): Without seal
- Maintenance free: Nein
- Thread type: Not applicable
Specifications / All features
- Brand: SKF
- EAN: 7316577300492
- Supplier number: SKF SCF 70 ES
- Inner diameter
- 70 mm
- Seal (bearing)
- Without seal
- Maintenance free
- Nein
- Thread type
- Not applicable
- Maintenance
- Relubrication required
- Attachment feature, rod end shank
- Rectangular section, for welding
- Material, outer ring
- Bearing steel
- Centre height, housing (from end of shank)
- 115 mm
- Outside diameter, housing eye
- 166.5 mm
- Bore diameter, bearing inner ring
- 70 mm
- Basic static load rating
- 680 kN
- Material, housing
- Steel
- Sealing
- Without
- Material, inner ring
- Bearing steel
- Width, bearing inner ring
- 49 mm
- Sliding contact surface combination
- Steel/steel, standard
- Width, housing eye
- 57 mm
- Basic dynamic load rating
- 315 kN
- Housing length, total
- 199 mm
