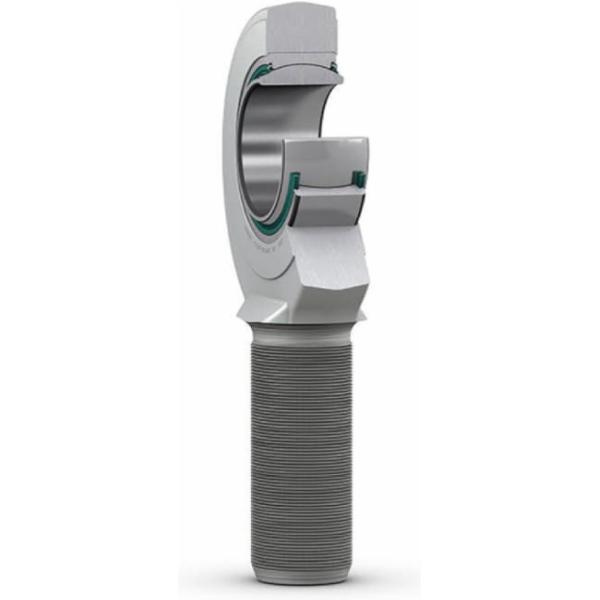

SKF SALA 50 TXE-2LS rod head with male thread, left-hand thread 50 mm, M 45x3

Show more features

Inner diameter

50 mm

Connection type

Outer thread

Thread type

Metric fine - Left

Seal (bearing)

Double-sided sealed

Maintenance free

Yes

Connection size

M45 x 3

Material, housing

Steel

Thread designation

M 45x3

Attachment feature, rod end shank

Left-hand male thread

Material, outer ring

Bearing steel

Centre height, housing (from end of shank)

185 mm

Sealing type

Triple-lip

Outside diameter, housing eye

114 mm

Bore diameter, bearing inner ring

50 mm

Basic static load rating

245 kN

Sealing

Seal on both sides

Maintenance

Maintenance-free

Material, inner ring

Bearing steel

Width, bearing inner ring

35 mm

Sliding contact surface combination

Steel/PTFE fabric

Width, housing eye

31 mm

Basic dynamic load rating

440 kN

Housing length, total

244 mm
