skf-saa-60-es-2rs-saa-60-es-2rs
SKF

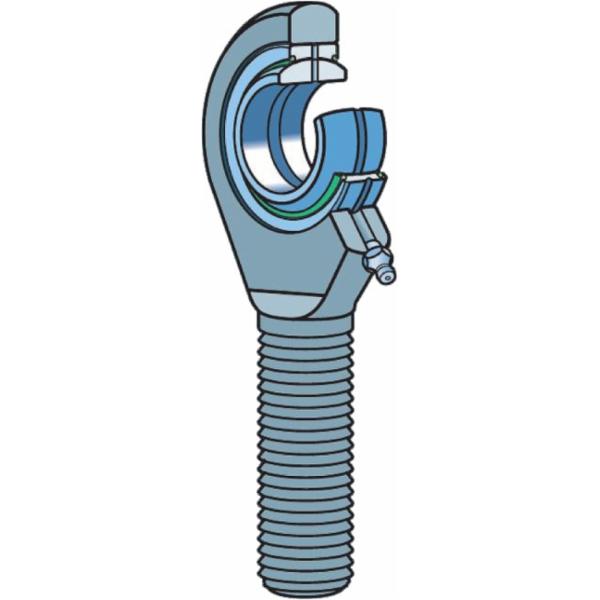

SKF SAA 60 ES-2RS Rod head with male thread 60 mm, M 52x3

This article is not available

Key features according to our expert
  • Inner diameter: 60 mm
  • Connection type: Outer thread
  • Thread type: Metric
  • Seal (bearing): Double-sided sealed
  • Maintenance free: Nein
  • Connection size: M52 x 3
Specifications / All features
  • Brand: SKF
  • EAN: 7316570450750
  • Supplier number: SKF SAA 60 ES-2RS
Inner diameter
60 mm
Connection type
Outer thread
Thread type
Metric
Seal (bearing)
Double-sided sealed
Maintenance free
Nein
Connection size
M52 x 3
Material, housing
Steel
Thread designation
M 52x3
Attachment feature, rod end shank
Right-hand male thread
Material, outer ring
Bearing steel
Centre height, housing (from end of shank)
210 mm
Sealing type
Double-lip
Outside diameter, housing eye
137 mm
Bore diameter, bearing inner ring
60 mm
Basic static load rating
360 kN
Sealing
Seal on both sides
Maintenance
Relubrication required
Material, inner ring
Bearing steel
Width, bearing inner ring
44 mm
Sliding contact surface combination
Steel/steel, standard
Width, housing eye
39 mm
Basic dynamic load rating
245 kN
Housing length, total
281 mm
