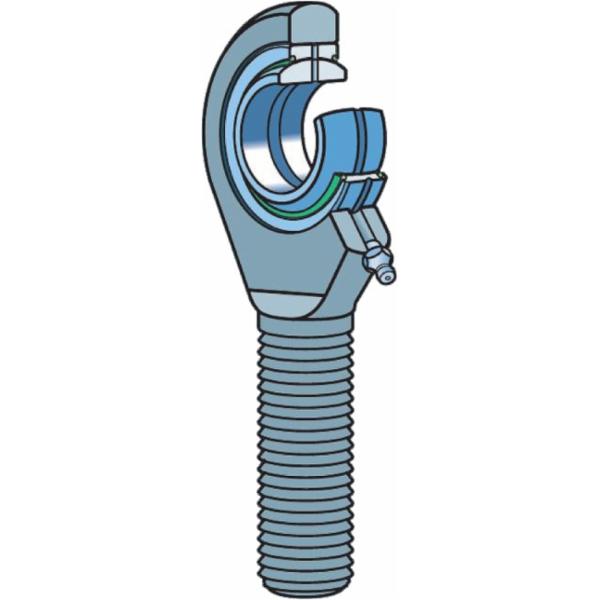

SKF SAA 45 ES-2RS Rod head with male thread 45 mm, M 42x3

Show more features

Inner diameter

45 mm

Connection type

Outer thread

Thread type

Metric fine

Seal (bearing)

Double-sided sealed

Maintenance free

Nein

Connection size

M42 x 3

Material, housing

Steel

Thread designation

M 42x3

Attachment feature, rod end shank

Right-hand male thread

Material, outer ring

Bearing steel

Centre height, housing (from end of shank)

163 mm

Sealing type

Double-lip

Outside diameter, housing eye

104 mm

Bore diameter, bearing inner ring

45 mm

Basic static load rating

200 kN

Sealing

Seal on both sides

Maintenance

Relubrication required

Material, inner ring

Bearing steel

Width, bearing inner ring

32 mm

Sliding contact surface combination

Steel/steel, standard

Width, housing eye

28 mm

Basic dynamic load rating

127 kN

Housing length, total

217 mm
