SKF

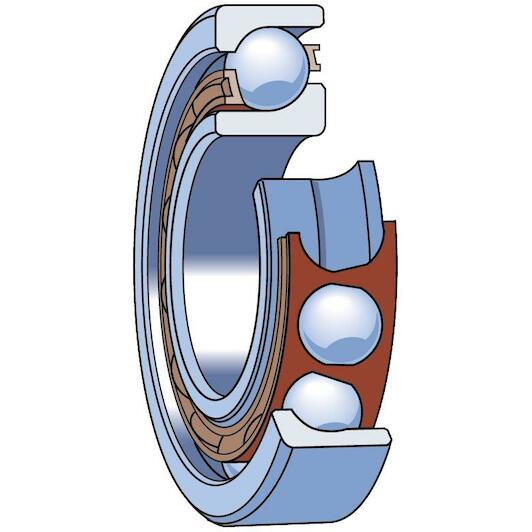

SKF 7216 CD/P4A single-row super-precision angular contact ball bearing 80 x 140 x 52 mm with contact angle 15°

This article is not available

Product description:

  • Angular contact ball bearings have raceways in the inner and outer rings that are offset relative to each other in the direction of the centre line of the bearing
  • This means that they are particularly suitable for combined loads, i.e. equally occurring radial and axial loads
  • The axial load carrying capacity of angular contact ball bearings increases as the contact angle increases
  • The contact angle is defined as the angle between the line connecting the contact points of the ball and the raceways in the radial plain (along which the load is transferred from one raceway to the other) and the line perpendicular to the centreline of the bearing
  • Angular contact ball bearings are produced in a wide range of designs and sizes
Key features according to our expert
  • Inner diameter: 80 mm
  • Width: 26 mm
  • Number of rows: 1
  • Seal (bearing): Without seal
  • Material (bearing seal): Not applicable
  • Outer diameter: 140 mm
Specifications / All features
  • Brand: SKF
  • EAN: 7316570047240
  • Supplier number: SKF 7216 CD/P4A
Inner diameter
80 mm
Width
26 mm
Number of rows
1
Seal (bearing)
Without seal
Material (bearing seal)
Not applicable
Outer diameter
140 mm
Basic static load rating
75 kN
Ring type
One-piece inner and outer rings
Tolerance class
P4A
Contact type
Normal contact (two-point contact)
Design
High-capacity D
Matched arrangement
No
Lubricant
None
Attainable speed for oil-air lubrication
16,000 r/min
Material, bearing
Bearing steel
Attainable speed for grease lubrication
9,500 r/min
Sealing
Without
Contact angle
15 °
Matched condition (axial clearance/ preload)
Not applicable
Bore diameter
80 mm
Basic dynamic load rating
85.2 kN
Coating
Without
Outside diameter
140 mm
Universal matching bearing
No
