SKF 3206 A-2RS1TN9/MT33 double-row angular contact ball bearing 30 x 62 x 23.8 mm with contact angle 30°

Supplier number: SKF 3206 A-2RS1TN9/MT33 | EAN 7316570390452

Recommended Retail Price €160.72

79.40 tax incl.

€65.62 excl. VAT (incl. all environmental contributions)

On stock - immediately available | we have 6 products in stock.

Ordered before 20:00 - delivered as of 30/09/2026
Shipping costs €6.99 VAT included | Free shipping for orders over a total amount of 125 euros
Delivery by DHL

↓ Documents (1) ✆ Talk to a specialist

Dependable load support with Skf

Practical benefits

High combined load capacity: You support simultaneous heavy radial and bi-directional axial loads effortlessly thanks to the double-row layout with a 30° contact angle.
Dual contact seal protection: The rubber seals on both sides keep lubrication inside while shielding internal components against dirt and moisture for longer service life.
Smooth high-speed performance: The glass-fiber reinforced polyamide cage reduces friction and vibration, ensuring your machinery runs smoothly and efficiently at high rotational speeds.

In a nutshell

The right choise for

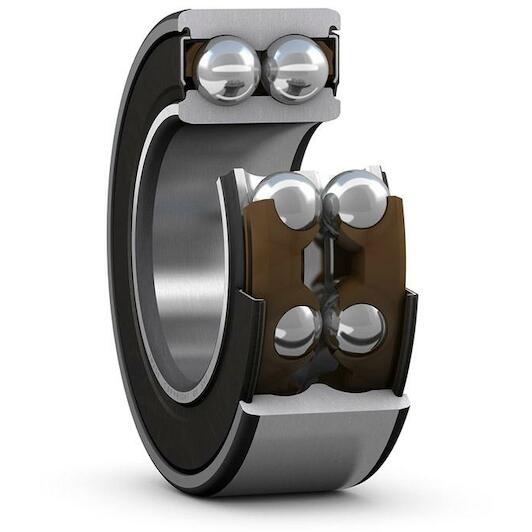

With the Skf 3206 A-2RS1TN9/MT33 double-row angular contact ball bearing, you ensure rigid shaft guidance and dependable power transmission. Featuring a double-row design and a 30° contact angle, it effortlessly handles heavy simultaneous radial and bi-directional axial loads, making it ideal for pumps, compressors, and gearboxes. The built-in 2RS1 rubber contact seals on both sides keep dust and moisture out, while factory pre-lubrication with MT33 lithium grease provides reliable, maintenance-free operation. Its durable TN9 glass-fiber reinforced polyamide cage reduces friction, noise, and vibration, keeping your rotating machinery running smoothly and efficiently at high speeds.

Product information FAQ

€79.40

In stock - tax incl.

Key features according to our expert

Inner diameter: 30 mm
Width: 23,8 mm
Number of rows: 2
Axial clearance: CN (Normal)
Sealing (bearing): Sealed on both sides
Material (bearing seal): Rubber
Material (cage): Plastic
Outer diameter: 62 mm

Product description

Double row angular contact ball bearings, with seals or shields, correspond to a pair of single row angular contact ball bearings in a back-to-back arrangement, while requiring less axial space. Depending on the sealing execution, they can operate at high speeds and are more suitable than deep groove ball bearings for supporting large axial forces in both directions.

High-speed capability
Accommodate relatively high radial loads, high axial loads in both directions and tilting moments
Suitable where a stiff bearing arrangement is required
Require less axial space than equivalent pair of single row angular contact ball bearings
Integral sealing prolongs bearing service life

Documents

⤓ Technical data sheet PDF

All Features

Inner diameter: 30 mm
Width: 23,8 mm
Number of rows: 2
Axial clearance: CN (Normal)
Sealing (bearing): Sealed on both sides
Material (bearing seal): Rubber
Material (cage): Plastic
Outer diameter: 62 mm
Matched arrangement: No
Locating feature, bearing outer ring: None
Ring type: One-piece inner and outer rings
Contact type: Normal contact (two-point contact)
Basic static load rating: 22
Sealing type: Contact
Relubrication feature: Without
Skf performance class: SKF Explorer
Lubricant: Grease
Arrangement of contact angle (double-row bearing): Back-to-back (O)
Cage: Non-metallic
Material, bearing: Bearing steel
Sealing: Seal on both sides
Bore diameter: 30
Axial internal clearance: CN
Contact angle: 30
Limiting speed: 7500
Basic dynamic load rating: 30.5
Coating: Without
Outside diameter: 62
Universal matching bearing: No

Brand SKF
01050363
EAN 7316570390452
Supplier number SKF 3206 A-2RS1TN9/MT33

Frequently asked questions about this product

Answered by specialists

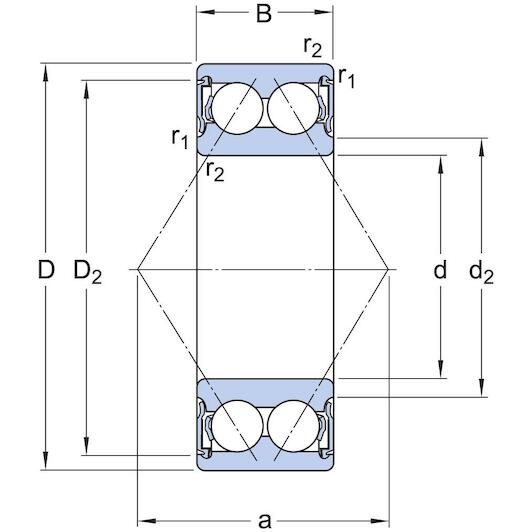

What are the dimensions of this angular contact ball bearing?: The bearing has an inside diameter of 30 mm, an outside diameter of 62 mm, and a width of 23.8 mm.
What loads can this bearing accommodate?: Thanks to its double-row design and 30° contact angle, it supports simultaneous radial and axial loads in both directions.
What sealing does this SKF bearing have?: It features 2RS1 rubber contact seals on both sides to protect against contamination and moisture.
What material is the cage made of?: The TN9 cage is made of glass-fibre reinforced polyamide.
Does this bearing need lubrication before installation?: No, it is factory pre-lubricated with MT33 lithium grease and ready for immediate installation.
