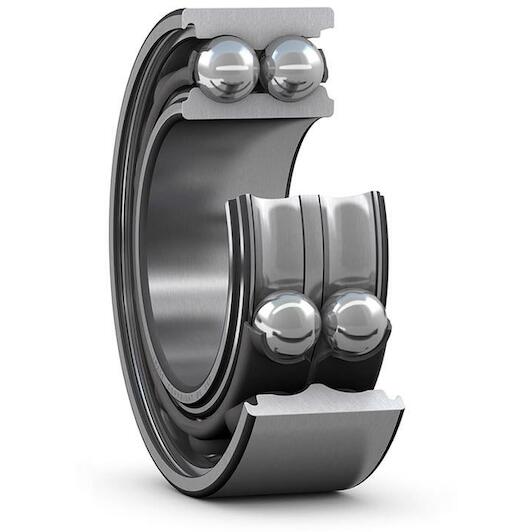

SKF 3205 ATN9 double-row angular contact ball bearing 25 x 52 x 20.6 mm with contact angle 30°

Supplier number: SKF 3205 ATN9 | EAN 7316577036186

Recommended Retail Price €112.81

55.80 tax incl.

€46.12 excl. VAT (incl. all environmental contributions)

On stock - immediately available | we have 2 products in stock.

Ordered before 20:00 - delivered as of 30/09/2026
Shipping costs €11.99 VAT included | Free shipping for orders over a total amount of 125 euros
Delivery by DHL

↓ Documents (1) ✆ Talk to a specialist

Rigid performance with Skf engineering

Practical benefits

Bidirectional axial load support: You handle heavy radial loads and bidirectional axial forces simultaneously thanks to the two-row angular contact design.
Smooth high-speed rotation: The lightweight polyamide cage reduces friction and inertia, allowing you to run smoothly at high rotational speeds.
Compact and stiff assembly: You save axial installation space in your equipment while maintaining superior bearing stiffness and precision.

In a nutshell

The right choise for

With the Skf 3205 ATN9 double row angular contact ball bearing, you create a stiff, high-performing bearing arrangement in compact industrial machinery. Its 30° contact angle accommodates heavy radial loads and bidirectional axial forces simultaneously, making it ideal for centrifugal pumps, compressors, and gearboxes. Measuring 25 x 52 x 20.6 mm, this open unit saves valuable axial space without sacrificing rigidity. The lightweight glass-fibre reinforced polyamide cage reduces friction and noise, ensuring smooth, vibration-free rotation at high speeds so your drive systems run with dependable precision.

Product information FAQ

€55.80

In stock - tax incl.

Key features according to our expert

Inner diameter: 25 mm
Width: 20,6 mm
Number of rows: 2
Axial clearance: CN (Normal)
Sealing (bearing): Without seals
Material (bearing seal): Not applicable
Material (cage): Plastic
Outer diameter: 52 mm

Product description

Double row angular contact ball bearings correspond, in their design and operation, to a pair of single row angular contact ball bearings in a back-to-back arrangement, while requiring less axial space. They can operate at high speeds and are more suitable than deep groove ball bearings for supporting large axial forces in both directions.

High-speed capability
Accommodate relatively high radial loads, high axial loads in both directions and tilting moments
Suitable where a stiff bearing arrangement is required
Require less axial space than equivalent pair of single row angular contact ball bearings

Documents

⤓ Technical data sheet PDF

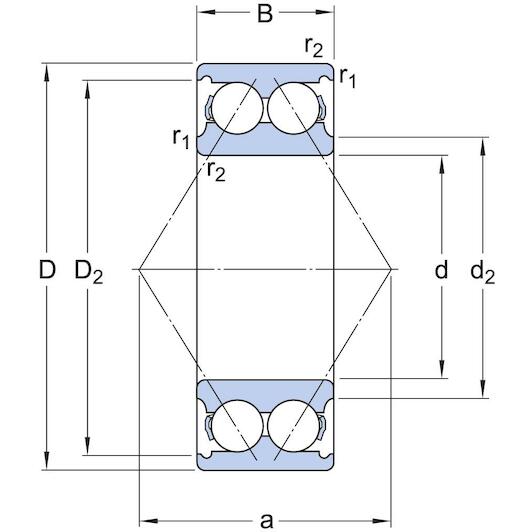

All Features

Inner diameter: 25 mm
Width: 20,6 mm
Number of rows: 2
Axial clearance: CN (Normal)
Sealing (bearing): Without seals
Material (bearing seal): Not applicable
Material (cage): Plastic
Outer diameter: 52 mm
Matched arrangement: No
Locating feature, bearing outer ring: None
Ring type: One-piece inner and outer rings
Contact type: Normal contact (two-point contact)
Basic static load rating: 15.3
Lubricant: None
Relubrication feature: Without
Reference speed: 12000
Skf performance class: SKF Explorer
Arrangement of contact angle (double-row bearing): Back-to-back (O)
Cage: Non-metallic
Material, bearing: Bearing steel
Sealing: Without
Bore diameter: 25
Axial internal clearance: CN
Contact angle: 30
Limiting speed: 12000
Basic dynamic load rating: 22
Coating: Without
Outside diameter: 52
Universal matching bearing: No

Brand SKF
01050006
EAN 7316577036186
Supplier number SKF 3205 ATN9

Frequently asked questions about this product

Answered by specialists

What are the dimensions of this SKF angular contact ball bearing?: The bearing has a 25 mm bore diameter, a 52 mm outer diameter, and a width of 20.6 mm.
What loads can this double row bearing accommodate?: Thanks to its 30° contact angle, it accommodates radial loads and axial loads in both directions.
What does the TN9 designation stand for?: TN9 indicates that the bearing is fitted with a glass-fibre reinforced polyamide (plastic) cage.
Does this bearing include integrated seals?: No, this is an open bearing without seals or shields.
What internal clearance does this bearing have?: This bearing features standard internal clearance (designated as CN).
