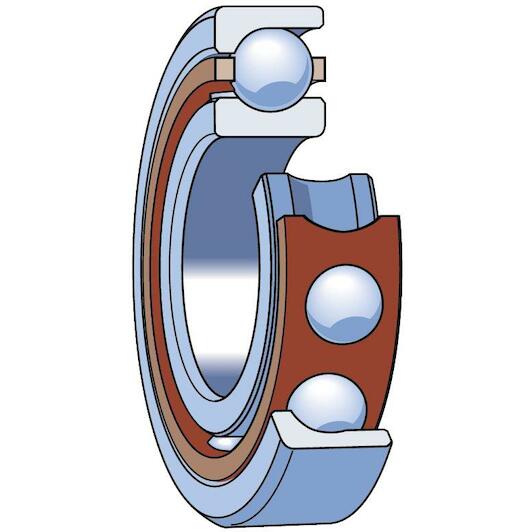

Product description These super-precision, high-capacity, single row angular contact ball bearings, with 25° contact angle, accommodate radial and axial loads acting simultaneously, where the axial load acts in one direction only. They are designed to accommodate heavy loads at relatively high speeds under low to moderate operating temperatures. Avantages Very high running accuracy Very high load carrying capacity Relatively high speed and stiffness
Key features according to our expert
Inner diameter: 20 mm
Width: 12 mm
Number of rows: 1
Seal (bearing): Without seal
Material (bearing seal): Not applicable
Outer diameter: 42 mm

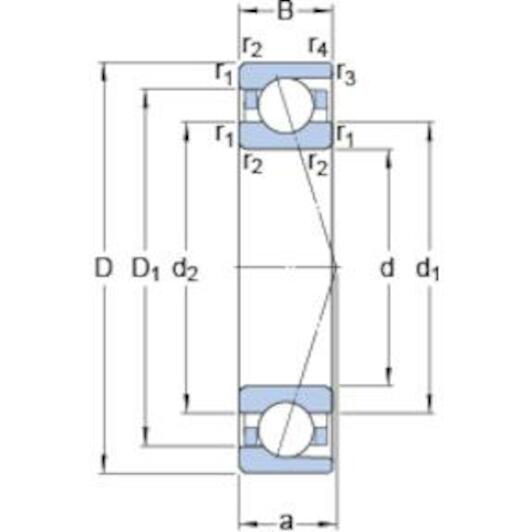

Specifications / All features
Brand:
SKF
01050399
EAN:
7316571092164
Supplier number:
SKF 7004 ACD/P4A
Inner diameter
20 mm
Width
12 mm
Number of rows
1
Seal (bearing)
Without seal
Material (bearing seal)
Not applicable
Outer diameter
42 mm
Basic static load rating
4.15 kN
Ring type
One-piece inner and outer rings
Tolerance class
P4A
Contact type
Normal contact (two-point contact)
Design
High-capacity D
Matched arrangement
No
Lubricant
None
Attainable speed for oil-air lubrication
60,000 r/min
Material, bearing
Bearing steel
Attainable speed for grease lubrication
38,000 r/min
Sealing
Without
Contact angle
25 °
Matched condition (axial clearance/ preload)
Not applicable
Bore diameter
20 mm
Basic dynamic load rating
8.32 kN
Coating
Without
Outside diameter
42 mm
Universal matching bearing
No
