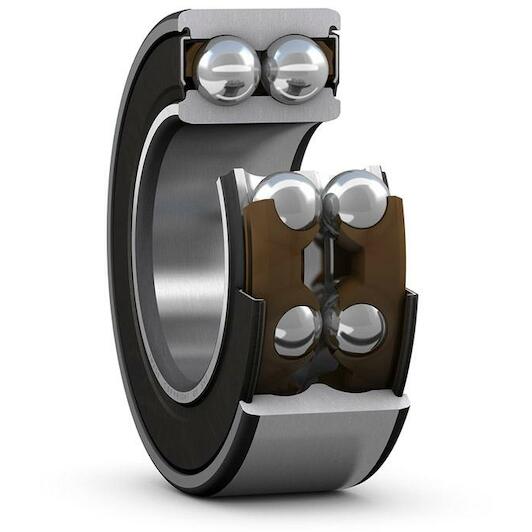

SKF 3205 A-2RS1TN9/MT33 double-row angular contact ball bearing 25 x 52 x 20.6 mm with contact angle 30°

Supplier number: SKF 3205 A-2RS1TN9/MT33 | EAN 7316570684759

Recommended Retail Price €134.75

66.60 tax incl.

€55.04 excl. VAT (incl. all environmental contributions)

On stock - immediately available

Ordered before 20:00 - delivered as of 30/09/2026
Shipping costs €11.99 VAT included | Free shipping for orders over a total amount of 125 euros
Delivery by DHL

↓ Documents (1) ✆ Talk to a specialist

Maximum reliability with Skf bearings

Practical benefits

Double sided sealed protection: Rubber contact seals on both sides retain lubrication and keep dirt out to protect your machine components.
Supports high combined loads: With a 30° contact angle, you can easily accommodate heavy radial loads and bidirectional axial forces simultaneously.
Smooth running polymer cage: The engineered plastic cage reduces friction and noise, ensuring you experience smooth operation during demanding daily use.

In a nutshell

The right choise for

With the Skf 3205 A-2RS1TN9/MT33 double row angular contact ball bearing, you ensure dependable performance and rigid shaft guidance within a compact envelope. Featuring a 30° contact angle, it simultaneously accommodates heavy radial forces and bidirectional axial loads. The dual-sided 2RS1 rubber contact seals keep lubrication securely inside while shielding vital internal components from dust and moisture. Furthermore, the lightweight glass-fibre reinforced polyamide cage (TN9) reduces friction and running noise for smooth, efficient operation. Measuring 25 x 52 x 20.6 mm with standard cn internal clearance, this bearing provides a low-maintenance, robust solution for pumps, gearboxes, and industrial drivetrains.

Product information FAQ

€66.60

In stock - tax incl.

Key features according to our expert

Inner diameter: 25 mm
Width: 20,6 mm
Number of rows: 2
Axial clearance: CN (Normal)
Sealing (bearing): Sealed on both sides
Material (bearing seal): Rubber
Material (cage): Plastic
Outer diameter: 52 mm

Product description

Double row angular contact ball bearings, with seals or shields, correspond to a pair of single row angular contact ball bearings in a back-to-back arrangement, while requiring less axial space. Depending on the sealing execution, they can operate at high speeds and are more suitable than deep groove ball bearings for supporting large axial forces in both directions.

High-speed capability
Accommodate relatively high radial loads, high axial loads in both directions and tilting moments
Suitable where a stiff bearing arrangement is required
Require less axial space than equivalent pair of single row angular contact ball bearings
Integral sealing prolongs bearing service life

Documents

⤓ Technical data sheet PDF

All Features

Inner diameter: 25 mm
Width: 20,6 mm
Number of rows: 2
Axial clearance: CN (Normal)
Sealing (bearing): Sealed on both sides
Material (bearing seal): Rubber
Material (cage): Plastic
Outer diameter: 52 mm
Matched arrangement: No
Locating feature, bearing outer ring: None
Ring type: One-piece inner and outer rings
Contact type: Normal contact (two-point contact)
Basic static load rating: 15.3
Sealing type: Contact
Relubrication feature: Without
Skf performance class: SKF Explorer
Lubricant: Grease
Arrangement of contact angle (double-row bearing): Back-to-back (O)
Cage: Non-metallic
Material, bearing: Bearing steel
Sealing: Seal on both sides
Bore diameter: 25
Axial internal clearance: CN
Contact angle: 30
Limiting speed: 8500
Basic dynamic load rating: 22
Coating: Without
Outside diameter: 52
Universal matching bearing: No

Brand SKF
01050361
EAN 7316570684759
Supplier number SKF 3205 A-2RS1TN9/MT33

Frequently asked questions about this product

Answered by specialists

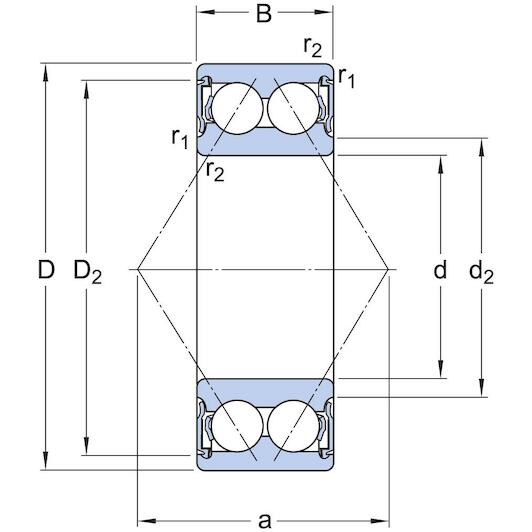

What are the dimensions of this SKF bearing?: The bearing has a 25 mm bore diameter, a 52 mm outer diameter, and a width of 20.6 mm.
What loads can this double row bearing accommodate?: With its 30° contact angle, it accommodates radial loads and axial loads in both directions.
How is this bearing sealed?: The 2RS1 designation indicates rubber contact seals on both sides to protect against contamination.
What does the suffix TN9 mean?: The TN9 code indicates a cage made from glass-fibre reinforced polyamide.
What internal clearance does this bearing have?: This bearing is manufactured with standard normal internal clearance (CN).
