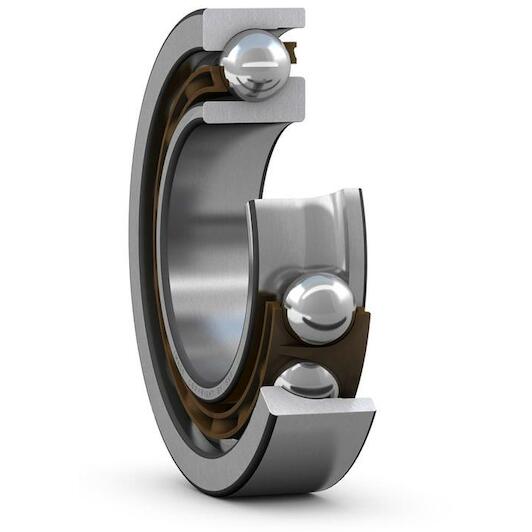

SKF 7206 BECBP single-row angular contact ball bearing 30 x 62 x 16 mm with contact angle 40°

Supplier number: SKF 7206 BECBP | EAN 7316571410326

Recommended Retail Price €148.87

73.60 tax incl.

€60.83 excl. VAT (incl. all environmental contributions)

On stock - immediately available | we have 7 products in stock.

Ordered before 20:00 - delivered as of 30/09/2026
Shipping costs €11.99 VAT included | Free shipping for orders over a total amount of 125 euros
Delivery by DHL

↓ Documents (1) ✆ Talk to a specialist

Reliable load handling with 7206 BECBP

Practical benefits

High combined load capacity: You can support heavy radial and unilateral axial forces simultaneously thanks to the 40° contact angle.
Smooth high speed operation: The lightweight polymer cage minimizes friction, allowing you to run machinery smoothly at high rotational speeds.
Easy lubrication and maintenance: The open design enables you to apply specific lubricants directly, ensuring dependable performance in demanding setups.

In a nutshell

The right choise for

With the Skf 7206 becbp single row angular contact ball bearing, you keep rotating machinery running smoothly and reliably. The 40° contact angle enables it to handle heavy simultaneous radial and unilateral axial loads with ease. Its lightweight polymer cage minimizes friction and operating noise, allowing dependable performance at high rotational speeds. Featuring dimensions of 30 x 62 x 16 mm and an open design, this bearing allows straightforward lubrication for demanding setups in pumps, compressors, and gearboxes, delivering precise shaft support during overhauls.

Product information FAQ

€73.60

In stock - tax incl.

Key features according to our expert

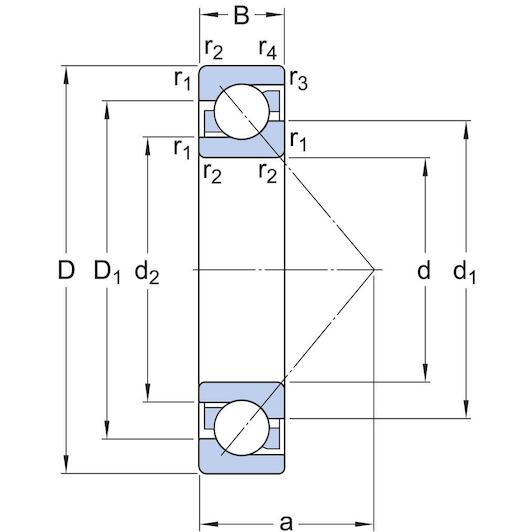

Inner diameter: 30 mm
Width: 16 mm
Number of rows: 1
Axial clearance: Not applicable
Sealing (bearing): Without seals
Material (bearing seal): Not applicable
Material (cage): Plastic
Outer diameter: 62 mm

Product description

These single row angular contact ball bearings can accommodate radial and axial loads acting simultaneously, where the axial load acts in one direction only. They can operate at high speeds and, depending on the variant, even very high speeds. They are more suitable than deep groove ball bearings for supporting large axial forces acting in one direction.

High-speed capability
Accommodate relatively high radial loads and large unilateral axial loads

Documents

⤓ Technical data sheet PDF

All Features

Inner diameter: 30 mm
Width: 16 mm
Number of rows: 1
Axial clearance: Not applicable
Sealing (bearing): Without seals
Material (bearing seal): Not applicable
Material (cage): Plastic
Outer diameter: 62 mm
Matched arrangement: No
Ring type: One-piece inner and outer rings
Tolerance class: Class P6 (P6)
Contact type: Normal contact (two-point contact)
Basic static load rating: 15.6
Lubricant: None
Relubrication feature: Without
Reference speed: 13000
Skf performance class: SKF Explorer
Sealing: Without
Cage: Non-metallic
Material, bearing: Bearing steel
Locating feature, bearing outer ring: None
Bore diameter: 30
Axial internal clearance: Not applicable
Contact angle: 40
Limiting speed: 14000
Matched condition (axial clearance/ preload): Axial clearance CB
Basic dynamic load rating: 24
Coating: Without
Outside diameter: 62
Universal matching bearing: Yes

Brand SKF
01050111
EAN 7316571410326
Supplier number SKF 7206 BECBP

Frequently asked questions about this product

Answered by specialists

What are the dimensions of this angular contact ball bearing?: The bearing has an inside diameter of 30 mm, an outside diameter of 62 mm, and a width of 16 mm.
What types of loads can the SKF 7206 BECBP handle?: It accommodates combined radial loads and heavy axial loads acting in one direction simultaneously.
What is the contact angle of this ball bearing?: This angular contact ball bearing features a 40° contact angle.
What material is the cage made of?: The cage for this variant is made of non-metallic polymer (glass-fibre reinforced polyamide).
Does this SKF bearing have integrated seals?: No, this is an open bearing without integrated seals.
