SKF

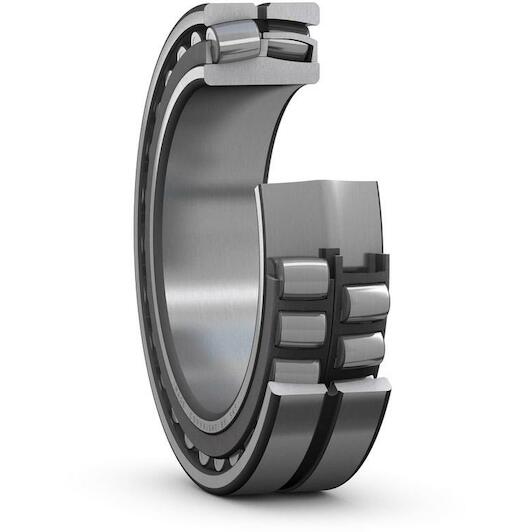

SKF BS2B 444169 A spherical roller bearing cylindrical 100 x 170 x 65 mm

This article is not available

Product description:

  • Spherical roller bearings, also called pendulum roller bearings, have two rows of rollers with a common spherical raceway in the outer ring
  • The two raceways of the inner ring are at an angle to the centre line of the shaft
  • The bearings can adjust and are therefore insensitive to shaft misalignment relative to the housing and to shaft deflection
  • Spherical roller bearings can support not only high radial loads but also axial loads in both directions
Key features according to our expert
  • Inner diameter: 100 mm
  • Width: 65 mm
  • Number of rows: 2
  • Seal (bearing): Without seal
  • Material (bearing seal): Not applicable
  • Radial clearance: C4
  • Material (cage): Brass (sheet)
  • Bore type: Cylindrical
  • Outer diameter: 170 mm
Specifications / All features
  • Brand: SKF
  • EAN: 7316570269178
  • Supplier number: SKF BS2B 444169 A
Inner diameter
100 mm
Width
65 mm
Number of rows
2
Seal (bearing)
Without seal
Material (bearing seal)
Not applicable
Radial clearance
C4
Material (cage)
Brass (sheet)
Bore type
Cylindrical
Outer diameter
170 mm
Radial internal clearance
C4
Locating feature, bearing outer ring
Without
Tolerance class
Normal
Cage
Sheet metal
Basic static load rating
640 kN
Relubrication feature
Without
Reference speed
2,200 r/min
Lubricant
None
Tolerance class for dimensions
Normal
Sealing
Without
Tolerance class for run-out
P5
Bore diameter
100 mm
Basic dynamic load rating
397 kN
Outside diameter
170 mm
