SKF 22220 E/C5 spherical roller bearing cylindrical 100 x 180 x 46 mm

Supplier number: SKF 22220 E/C5 | EAN 7316570340525
This product has been discontinued.



Product information

Key features according to our expert

  • Inner diameter: 100 mm
  • Outer diameter: 180 mm
  • Width: 46 mm
  • Material (bearing seal): Not applicable

Product description:

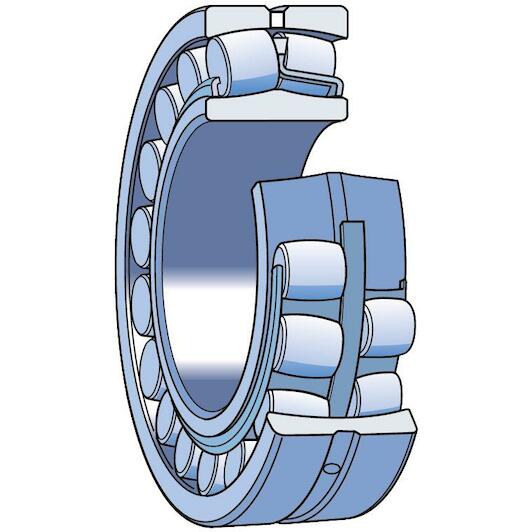

  • Spherical roller bearings, also called pendulum roller bearings, have two rows of rollers with a common spherical raceway in the outer ring
  • The two raceways of the inner ring are at an angle to the centre line of the shaft
  • The bearings can adjust and are therefore insensitive to shaft misalignment relative to the housing and to shaft deflection
  • Spherical roller bearings can support not only high radial loads but also axial loads in both directions

All Features

Inner diameter
100 mm
Outer diameter
180 mm
Width
46 mm
Material (bearing seal)
Not applicable
  • Brand SKF
  • EAN 7316570340525
  • Supplier number SKF 22220 E/C5
