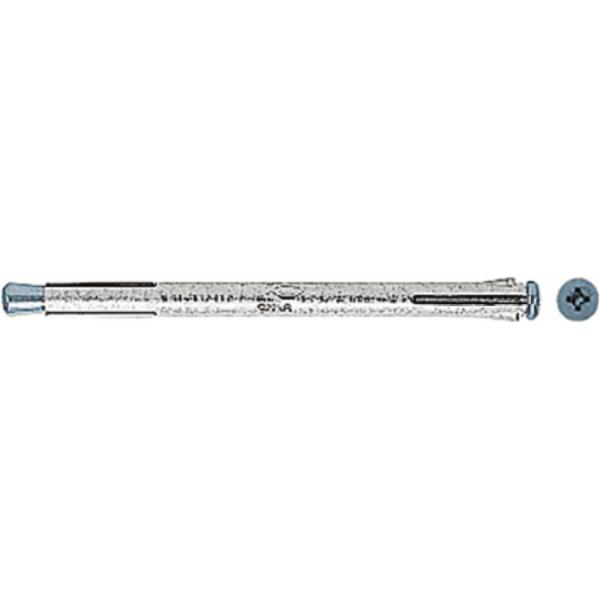

FISCHER 88666 frame plug F 8 M 132 electrolytically galvanised steel

Show more features

Material (wall plug)

Polyamide (Nylon®)

With screw

Yes

Application

General

Type (screw head)

PZ2

Wall plug type

Hammer-in plug

Front mounting

No

Remote mounting

Yes

Fire safety error

Yes

Screw size

M5 x 145 mm

Head variant

Lens head

Plug length

132 mm

Fire resistance

R120

Effective anchoring depth

30 mm

Drill diameter

8 mm

Min. anchoring depth

30 mm

Min. drill hole depth for through-hole mounting

150 mm

Pierce fitting

Yes

Implementation

with screw

Recording

Phillips head PZ

Max. attachment thickness

102 mm
