What drill diameter is required for this frame plug?

You need a drill bit with an 8 mm diameter.

Which screwdriver bit is needed for the included screw?

The countersunk screw requires a Torx TX30 bit.

Which base materials is this plug suitable for?

This anchor is suitable for brick, aerated concrete, and concrete.

What is the maximum fixture thickness for this anchor?

For this 8x100/50 model, the maximum fixture thickness is 50 mm.

Does this construction plug include the screw?

Yes, the plastic plug comes complete with a matching zinc-plated screw.

SPIT 567952 B-LONG universal zinc-plated construction plug with countersunk head and Torx connection 8x100/50 F TX30

Name: SPIT 567952 B-LONG universal zinc-plated construction plug with countersunk head and Torx connection 8x100/50 F TX30
Brand: SPIT
SKU: 02376993
Price: 1 EUR
Availability: InStock

Supplier number: SPIT 567952 | EAN 3439515679529

1.00 tax incl.

€0.83 excl. VAT (incl. all environmental contributions)

On stock - immediately available

The minimum purchase order quantity for the product is 50.

Ordered before 20:00 - delivered tomorrow 03/10/2026
Shipping costs €11.99 VAT included | Free shipping for orders over a total amount of 125 euros
Delivery by DHL

✆ Talk to a specialist

Solid frame fixing with Spit

Practical benefits

Flush and clean finish: The countersunk head sits perfectly level with the fixture surface to give you a neat installation.
Reliable grip without spinning: Uniform expansion secures the plug firmly in the drill hole to prevent rotation while you fasten.
Efficient torque and control: The TX30 drive prevents bit slippage so you can tighten screws quickly with total confidence.

In a nutshell

The right choise for

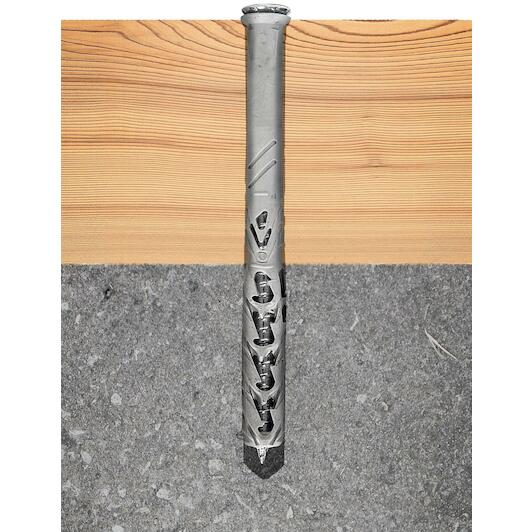

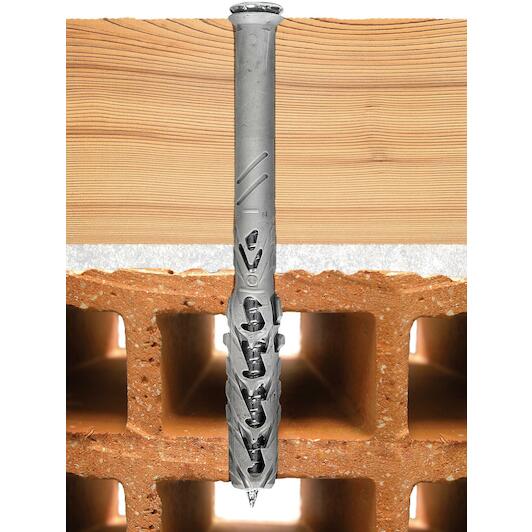

With the Spit B-Long 8X100/50 f frame plug, you can securely fasten wooden battens, slats, and frames up to 50 mm thick onto brick, aerated concrete, or concrete. The countersunk head ensures the included zinc-plated screw sits completely flush with your fixture for a neat finish. During installation in the 8 mm drill hole, uniform expansion prevents the plastic plug from spinning. Thanks to the TX30 Torx drive, you drive each screw quickly without bit slippage, allowing you to complete push-through fixings with total confidence and control.

Product information FAQ

€1.00

In stock - tax incl.

Key features according to our expert

Length (Wall plug): 100 mm
Material (wall plug): Plastic
Wall plug type: Hammer-in plug
With screw: Yes
Application: Brick; Aerated concrete
type (screw head): T30
Drilling diameter: 8 mm

Product description

Universal galvanised construction plug with countersunk head and Torx connection
Versatile frame & frame anchor with high performance
ETA-approved for fixings in concrete and masonry
Uniform expansion prevents rotation during application
Short anchor depth: only 40 mm for concrete, therefore less fixing time
High load values: up to 220 kg in concrete
Extra long lengths: fixing thickness up to 205 mm
Suitable for use in multiple materials, for a wide range of applications
Easy to install
Fire and seismic test reports

Applications

Windows
Doors
Fences

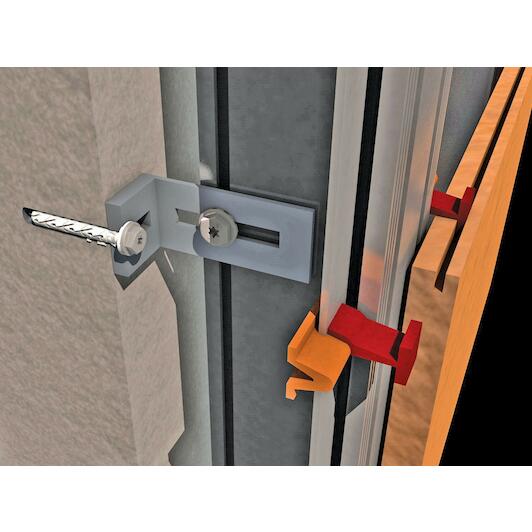

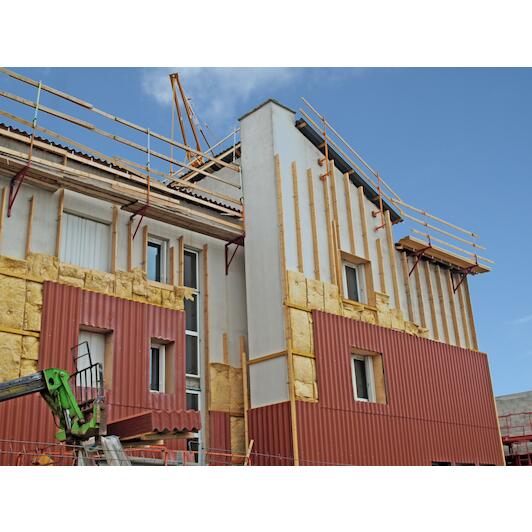

Ventilated facades
Cladding
Metal framing
Insulation supports
Metal brackets and cross members

All Features

Length (wall plug): 100 mm
Material (wall plug): Plastic
Wall plug type: Hammer-in plug
With screw: Yes
Application: Brick; Aerated concrete
Type (screw head): T30
Drilling diameter: 8 mm
Anchor diameter: 8.0 mm
Anchoring depth: 50 mm
Maximum trapping: 50 mm
Min. edge distance (mm): 100 mm
Min. anchor distance: 200 mm
Base material colour: PURPLE
Head type: Countersunk head
Product material: Nylon
Tightening torque: 12 N-m
Bit size: TX 30
Anchor length: 100 mm
Min. thickness of base material: 100 mm
Minimum drilling depth: 60 mm
Drill diameter: 8.0 mm
Maximum installation depth: 50 mm
Throughput diameter: 8 mm
Surface treatment: Galvanised
Treatment: Galvanised

Brand SPIT
02376993
EAN 3439515679529
Supplier number SPIT 567952

Frequently asked questions about this product

Answered by specialists

What drill diameter is required for this frame plug?: You need a drill bit with an 8 mm diameter.
Which screwdriver bit is needed for the included screw?: The countersunk screw requires a Torx TX30 bit.
Which base materials is this plug suitable for?: This anchor is suitable for brick, aerated concrete, and concrete.
What is the maximum fixture thickness for this anchor?: For this 8x100/50 model, the maximum fixture thickness is 50 mm.
Does this construction plug include the screw?: Yes, the plastic plug comes complete with a matching zinc-plated screw.
