SPIT 567951 B-LONG universal zinc-plated construction plug with countersunk head and Torx connection 8x80/30 F TX30

Name: SPIT 567951 B-LONG universal zinc-plated construction plug with countersunk head and Torx connection 8x80/30 F TX30
Brand: SPIT
SKU: 02454509
Price: 0.88 EUR
Availability: InStock

Supplier number: SPIT 567951 | EAN 3439515679512

0.88 tax incl.

€0.73 excl. VAT (incl. all environmental contributions)

On stock - immediately available

The minimum purchase order quantity for the product is 50.

Ordered before 20:00 - delivered tomorrow 02/10/2026
Shipping costs €11.99 VAT included | Free shipping for orders over a total amount of 125 euros
Delivery by DHL

✆ Talk to a specialist

Alternative to this product

FISCHER 540114 construction plug SXRL 8 x...

0.59

€0.49 excl. VAT

Delivery time average 9 days.

Strong anchoring with Spit fixings

Practical benefits

Secure expansion in masonry: The uniform expansion design stops the plug from rotating inside brick and aerated concrete during fixing.
Clean and flush finish: With the countersunk head, you achieve a tidy and flat surface alignment across your fixtures.
Efficient torque without slipping: The TX30 drive gives you optimum grip so you drive the zinc-plated screw cleanly into place.

In a nutshell

The right choise for

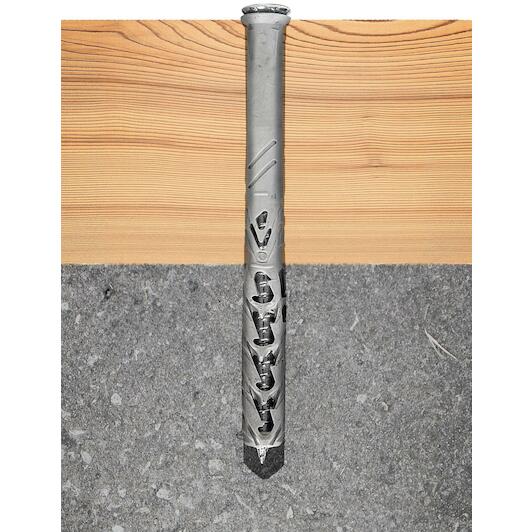

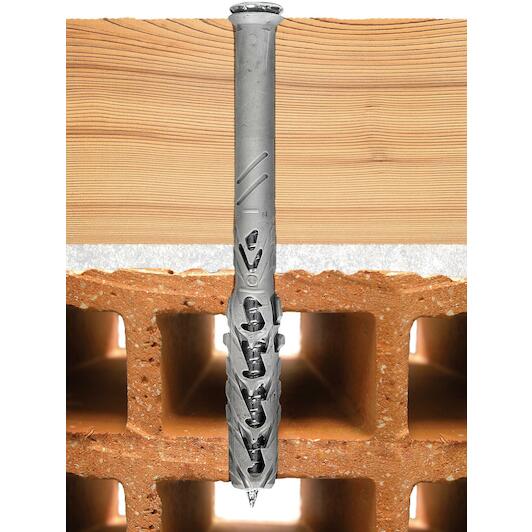

With the Spit b-long frame anchor, you achieve a strong and reliable fixing in solid and porous materials such as brick, aerated concrete, and concrete. The plastic plug expands uniformly inside an 8 mm drill hole, effectively preventing spinning during installation. Designed in an 8x80 mm format, it lets you fasten fixtures up to 30 mm thick quickly through direct push-through installation. The included zinc-plated screw features a countersunk head for a clean, flush finish on timber frames or battening. Its precise TX30 drive ensures optimum torque transfer without slipping.

Product information FAQ

€0.88

In stock - tax incl.

Key features according to our expert

Length (Wall plug): 80 mm
Material (wall plug): Plastic
Wall plug type: Hammer-in plug
With screw: Yes
Application: Brick; Aerated concrete
type (screw head): T30
Drilling diameter: 8 mm

Product description

Universal galvanised construction plug with countersunk head and Torx connection
Versatile frame & frame anchor with high performance
ETA-approved for fixings in concrete and masonry
Uniform expansion prevents rotation during application
Short anchor depth: only 40 mm for concrete, therefore less fixing time
High load values: up to 220 kg in concrete
Extra long lengths: fixing thickness up to 205 mm
Suitable for use in multiple materials, for a wide range of applications
Easy to install
Fire and seismic test reports

Applications

Windows
Doors
Fences

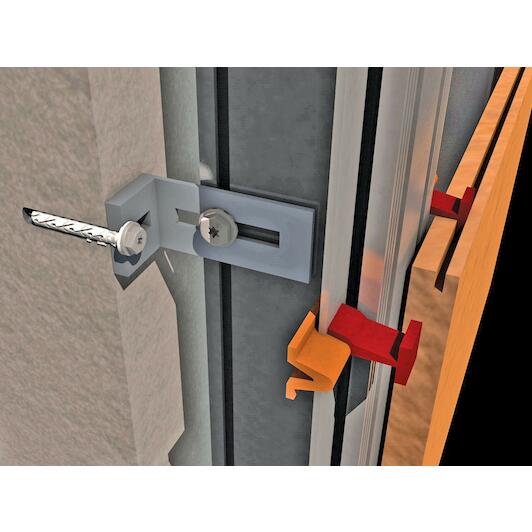

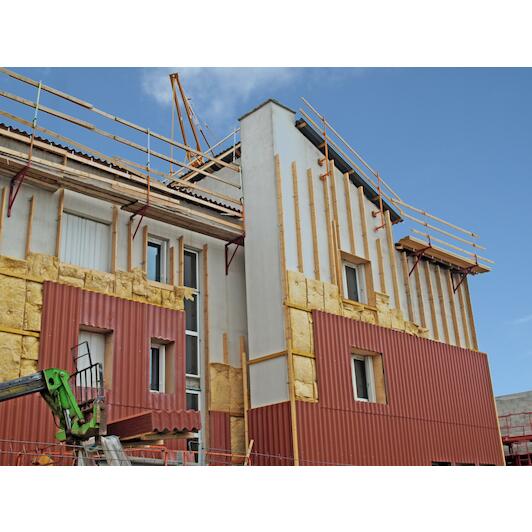

Ventilated facades
Cladding

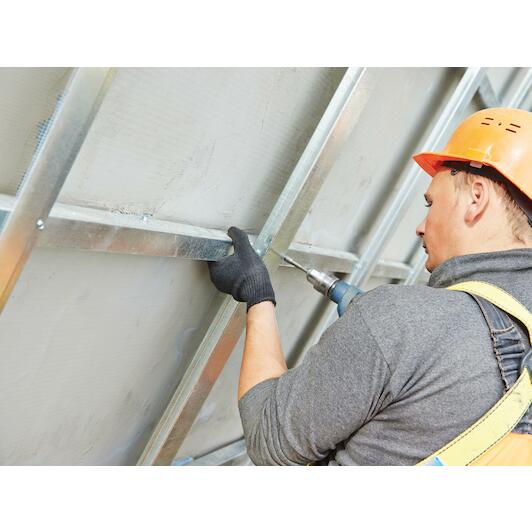

Metal framing
Insulation supports
Metal brackets and cross members

All Features

Length (wall plug): 80 mm
Material (wall plug): Plastic
Wall plug type: Hammer-in plug
With screw: Yes
Application: Brick; Aerated concrete
Type (screw head): T30
Drilling diameter: 8 mm
Anchor diameter: 8.0 mm
Anchoring depth: 50 mm
Maximum trapping: 30 mm
Min. edge distance (mm): 100 mm
Min. anchor distance: 200 mm
Base material colour: PURPLE
Head type: Countersunk head
Product material: Nylon
Tightening torque: 12 N-m
Bit size: TX 30
Anchor length: 80 mm
Min. thickness of base material: 100 mm
Minimum drilling depth: 60 mm
Drill diameter: 8.0 mm
Maximum installation depth: 50 mm
Throughput diameter: 8 mm
Surface treatment: Galvanised
Treatment: Galvanised

Brand SPIT
02454509
EAN 3439515679512
Supplier number SPIT 567951

Frequently asked questions about this product

Answered by specialists

What drill bit diameter is required for this Spit frame anchor?: You need a drill bit with an 8 mm diameter.
Which screwdriver bit is required for the screw head?: The countersunk screw uses a Torx TX30 bit.
What is the maximum fixture thickness you can fasten?: With this 8x80/30 mm size, you can fasten fixtures up to 30 mm thick.
Which base materials is this frame anchor suitable for?: This anchor is suitable for materials such as brick, aerated concrete, and concrete.
Does this frame plug include the screw?: Yes, the plastic plug comes complete with the matching zinc-plated screw.
