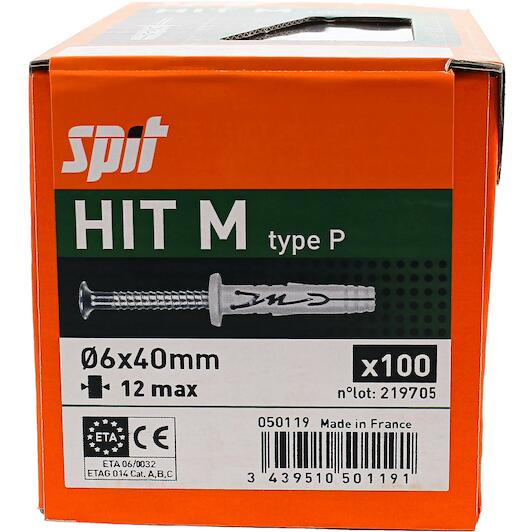

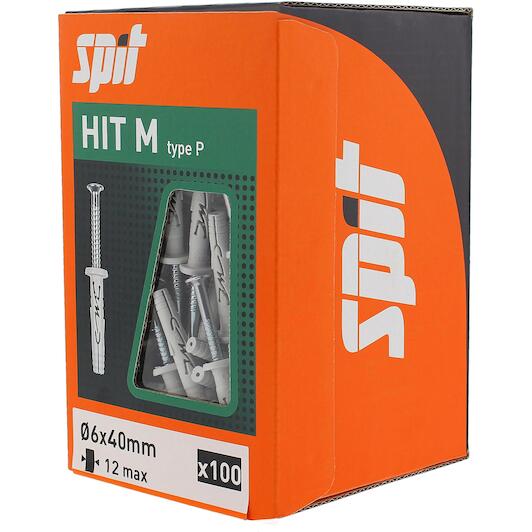

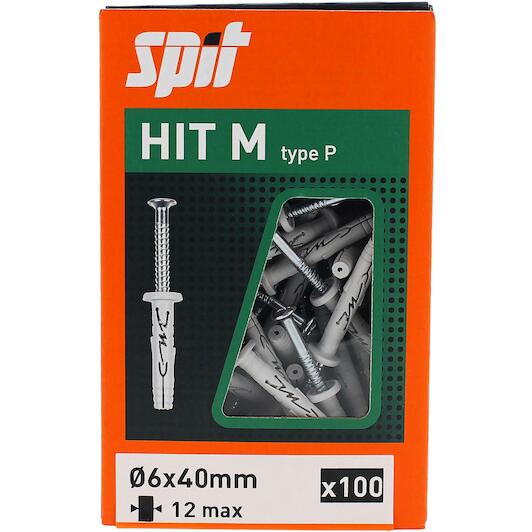

SPIT 050119 hammerhead plug with collar P HIT M 6x40/12

Name: SPIT 050119 hammerhead plug with collar P HIT M 6x40/12
Brand: SPIT
SKU: 02345251
Price: 0.13 EUR
Availability: InStock

Supplier number: SPIT 050119 | EAN 3439510501191

0.13 tax incl.

€0.11 excl. VAT (incl. all environmental contributions)

On stock - immediately available

The minimum purchase order quantity for the product is 100.

Ordered before 20:00 - delivered as of 02/10/2026
Shipping costs €11.99 VAT included | Free shipping for orders over a total amount of 125 euros
Delivery by DHL

↓ Documents (1) ✆ Talk to a specialist

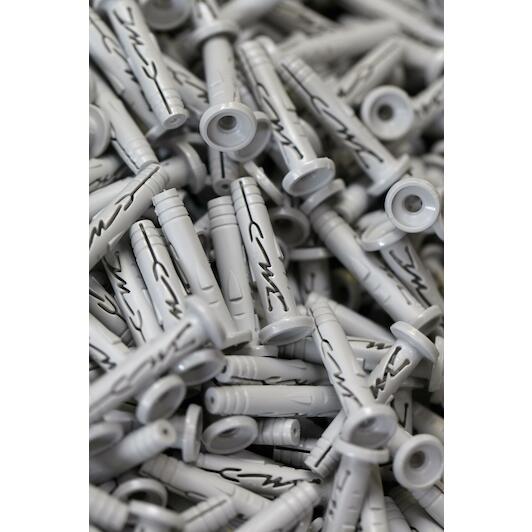

Fast anchoring with Spit plugs

Practical benefits

Rapid hammer in installation: You drive the plug directly into the drilled hole with a hammer, saving time during repetitive fixing tasks.
Secure collar pressure distribution: The flat collar prevents the plug from slipping through and ensures firm clamping against the fixture material.
Easy removal when needed: Featuring a PZ2 drive and saw-tooth thread, you can easily unscrew the nail screw whenever adjustment is required.

In a nutshell

The right choise for

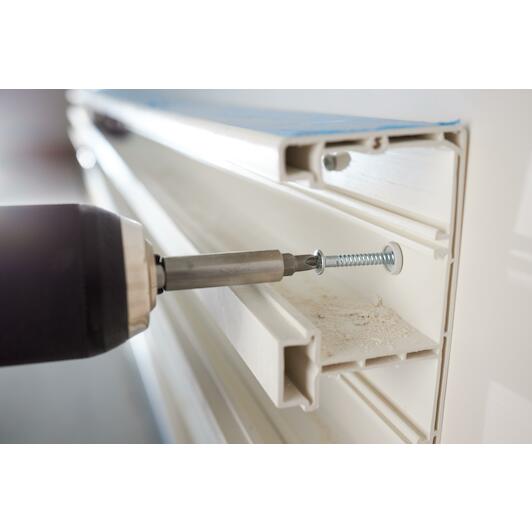

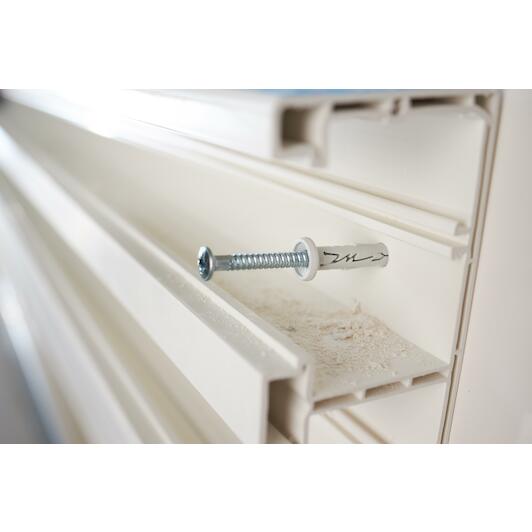

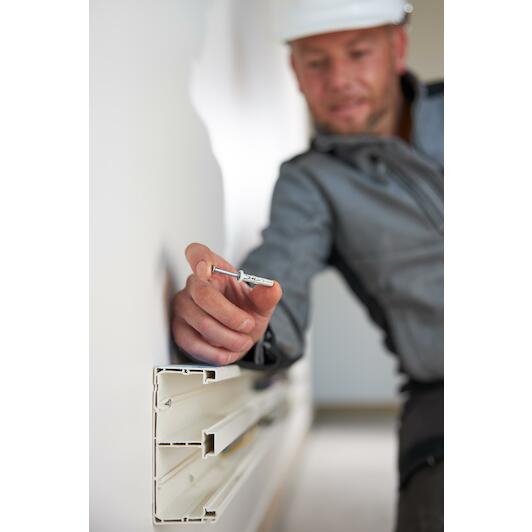

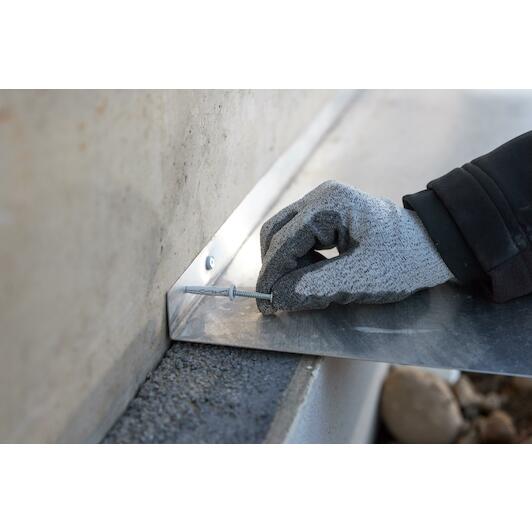

With the Spit hit M 6X40/12 hammer-in plug, you achieve fast and dependable fixings in brick and aerated concrete. Simply drive the plastic plug and pre-assembled nail screw into a 6 mm drilled hole with a hammer, speeding up repetitive installations such as fixing wooden battening, skirting boards, cable trays, or metal profiles. The flat collar prevents the plug from slipping too deep while providing even clamping pressure against the fixture. Whenever you need to make an adjustment or disassemble your work, the PZ2 drive head allows you to unscrew and remove the nail screw with ease.

Product information FAQ

€0.13

In stock - tax incl.

Key features according to our expert

Length (Wall plug): 32 mm
Material (wall plug): Plastic
Wall plug type: Hammer-in plug
With screw: Yes
With collar: Yes
Application: Brick; Aerated concrete
type (screw head): PZ2
Drilling diameter: 6 mm

Product description

High-performance percussion plug with collar for in all materials
Easy to install and suitable for all materials
CE certified percussion plug
Spreading through hammer blows
Perfect pressure due to flat collar
Very good performance in hollow materials
Flat finish due to countersunk head
Available with large collar (Hit M-P20)

Applications

Electrical installations

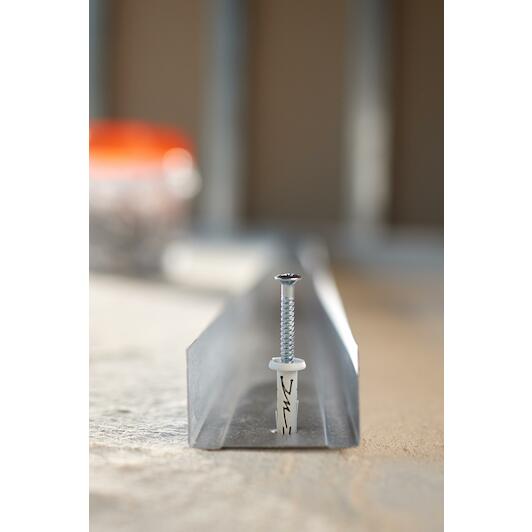

Metal stud profile
Beams and rafters
Signalling
Insulation supports
Skirting boards

Documents

⤓ Declaration of Conformity PDF

All Features

Length (wall plug): 32 mm
Material (wall plug): Plastic
Wall plug type: Hammer-in plug
With screw: Yes
With collar: Yes
Application: Brick; Aerated concrete
Type (screw head): PZ2
Drilling diameter: 6 mm
Maximum trapping: 12 mm
Bit size: PZ 2
Anchoring depth: 25 mm
Product material: Nylon
Anchor diameter: 6.0 mm
Min. anchor distance: 100 mm
Base material colour: PURPLE
Head type: Flat head
Minimum drilling depth: 35 mm
Min. thickness of base material: 100 mm
Surface treatment: Galvanised
Drill diameter: 6.0 mm
Maximum installation depth: 25 mm
Throughput diameter: 6 mm
Anchor length: 39 mm
Head diameter: 11.0 mm
Min. edge distance (mm): 100 mm

Brand SPIT
02345251
EAN 3439510501191
Supplier number SPIT 050119

Frequently asked questions about this product

Answered by specialists

What drill diameter is required for this hammer-in plug?: You need a 6 mm drill diameter for the Spit HIT M plug.
Which base materials is this plug suitable for?: This plug is suitable for use in solid brick and aerated concrete.
What drive type does the supplied screw have?: The pre-assembled screw features a PZ2 drive head.
What is the purpose of the collar on this plug?: The flat collar ensures proper clamping and prevents the plug from slipping through the drill hole.
Can the screw be removed after installation?: Yes, thanks to the PZ2 screw head, you can easily unscrew and remove it if needed.
