Product description
- Universal galvanised construction plug with countersunk head and Torx connection
- Versatile frame & frame anchor with high performance
- ETA-approved for fixings in concrete and masonry
- Uniform expansion prevents rotation during application
- Short anchor depth: only 40 mm for concrete, therefore less fixing time
- High load values: up to 220 kg in concrete
- Extra long lengths: fixing thickness up to 205 mm
- Suitable for use in multiple materials, for a wide range of applications
- Easy to install
- Fire and seismic test reports
Applications
- Windows
- Doors
- Fences

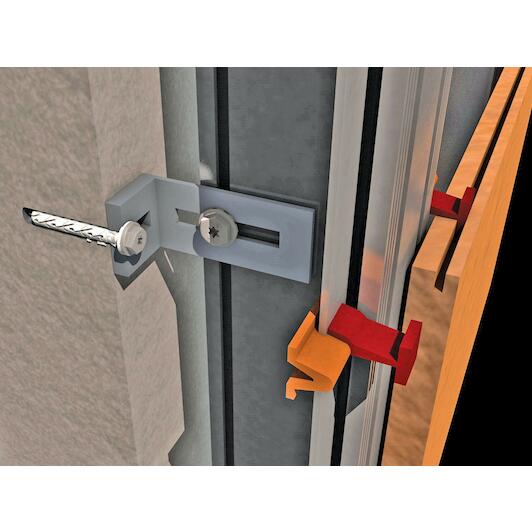

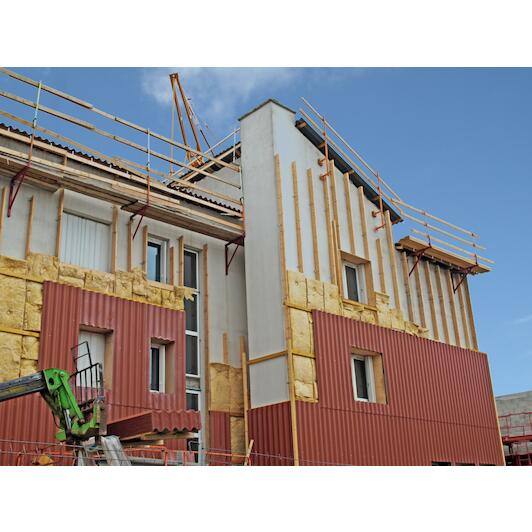

- Ventilated facades
- Cladding
- Metal framing
- Insulation supports
- Metal brackets and cross members
Key features according to our expert
-
Length (Wall plug): 230 mm
-
Material (wall plug): Plastic
-
Wall plug type: Hammer-in plug
-
With screw: Yes
-
Application: Aerated concrete
-
type (screw head): T40
-
Drilling diameter: 10 mm
Specifications / All features
-
Brand:
SPIT
-
02630421
-
EAN:
3439515679642
-
Supplier number:
SPIT 567964
- Length (wall plug)
- 230 mm
- Material (wall plug)
- Plastic
- Wall plug type
- Hammer-in plug
- With screw
- Yes
- Application
- Aerated concrete
- Type (screw head)
- T40
- Drilling diameter
- 10 mm
- Anchor diameter
- 10.0 mm
- Anchoring depth
- 50 mm
- Maximum trapping
- 180 mm
- Min. edge distance (mm)
- 100 mm
- Min. anchor distance
- 200 mm
- Base material colour
- PURPLE
- Head type
- Countersunk head
- Product material
- Nylon
- Tightening torque
- 16 N-m
- Bit size
- TX 40
- Anchor length
- 230 mm
- Min. thickness of base material
- 100 mm
- Minimum drilling depth
- 60 mm
- Drill diameter
- 10.0 mm
- Maximum installation depth
- 50 mm
- Throughput diameter
- 10 mm
- Surface treatment
- Galvanised
- Treatment
- Galvanised
