SKF

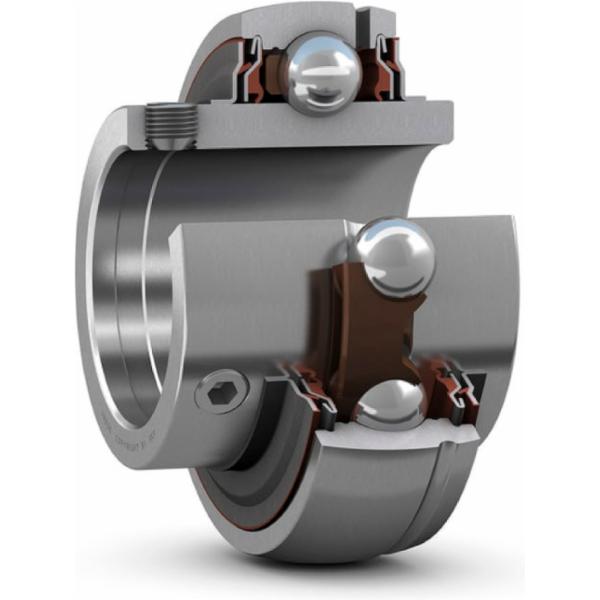

SKF YAR 211-200-2RF Y insert bearing cylindrical with set screw for inch shaft, 50.8 x 100 mm

This article is not available

Product description:

  • SKF self-aligning thrust washer bearing for heavy duty (2F) or very heavy duty (-2RF) conditions.
  • Fixation on shaft by means of two socket-head screws on extended inner ring
  • Spherical outer ring with lubrication holes and inner ring extended on both sides
Key features according to our expert
  • Inner diameter: 50,8 mm
  • Width: 55,6 mm
  • Material (bearing): Steel
  • Material (cage): Plastic
  • High temperature: No
  • Bore type: Cylindrical
  • Inner ring extension: On both sides
  • Outer diameter: 100 mm
Specifications / All features
  • Brand: SKF
  • EAN: 7316570496130
  • Supplier number: SKF YAR 211-200-2RF
Inner diameter
50,8 mm
Width
55,6 mm
Material (bearing)
Steel
Material (cage)
Plastic
High temperature
No
Bore type
Cylindrical
Inner ring extension
On both sides
Outer diameter
100 mm
Lubricant
Grease
Retaining feature, inner ring
Set screws
Basic static load rating
29 kN
Relubrication feature
With
Cage
Non-metallic
Rubber seating ring
Without
Width, outer ring
25 mm
Sealing type
Contact, multiple
Outer ring type
Spherical
Material, bearing
Bearing steel
Sealing
Seal and flinger on both sides
Note
Limiting speed with shaft tolerance h6
Width, total
55.6 mm
Width, inner ring
55.6 mm
Limiting speed
1,900 r/min
Bore diameter
50.8 mm
Basic dynamic load rating
43.6 kN
Coating
Without
Outside diameter
100 mm
Rolling elements
Balls
