What shaft size is the SKF YAT 205 insert bearing designed for?

This bearing has a 25 mm bore diameter and fits cylindrical metric shafts.

How is this insert bearing secured onto the shaft?

It locks onto the shaft using set screws located on the extended inner ring.

What are the outer dimensions of this bearing?

It features an outside diameter of 52 mm and a total width of 27.2 mm.

Is this bearing suitable for alternating directions of rotation?

Yes, the set screw locking mechanism accommodates both constant and alternating rotational directions.

Is this SKF bearing rated for high-temperature applications?

No, this standard bearing steel model with a non-metallic cage is not rated for high temperatures.

SKF YAT 205 Y insert bearing cylindrical with set screw for metric shaft, 25 x 52 mm

Supplier number: SKF YAT 205 | EAN 7316570707502

Recommended Retail Price €48.64

23.95 tax incl.

€19.79 excl. VAT (incl. all environmental contributions)

On stock - immediately available

Ordered before 20:00 - delivered tomorrow 10/10/2026
Shipping costs €11.99 VAT included | Free shipping for orders over a total amount of 125 euros
Delivery by DHL

↓ Documents (1) ✆ Talk to a specialist

Stable shaft support for industrial machinery

Practical benefits

Quick and simple mounting: You secure the unit onto the metric shaft quickly using the set screw locking system.
Constant and alternating rotation: The Skf insert bearing operates smoothly during both single-direction runs and alternating shaft rotations.
Resilient bearing steel build: Its tough steel construction withstands heavy mechanical demands while reducing operational noise and vibration levels.

In a nutshell

The right choise for

With the Skf yat 205 insert bearing, you achieve quick and reliable shaft support on cylindrical metric shafts with a 25 mm diameter. Thanks to the set screw locking system on the extended inner ring, you secure the unit firmly without requiring a press fit. Featuring a 52 mm outside diameter and a total width of 27.2 mm, this steel bearing with a plastic cage operates smoothly during constant and alternating shaft rotations. It provides stable performance for conveyor systems, machine building, and agricultural machinery while preventing axial displacement.

Product information FAQ

€23.95

In stock - tax incl.

Key features according to our expert

Inner diameter: 25 mm
Width: 27,2 mm
Material (bearing): Steel
Material (cage): Plastic
High temperature: No
Bore type: Cylindrical
Inner ring extension: On one side
Outer diameter: 52 mm

Product description

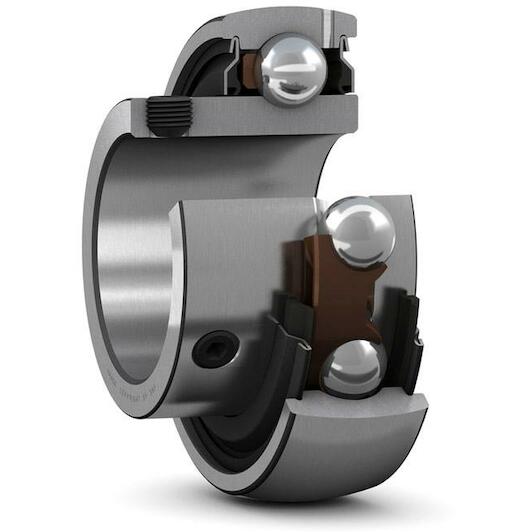

Insert bearings are based on sealed deep groove ball bearings. This variant of insert bearing is suitable for applications with both constant and alternating directions of rotation. It has an inner ring extended on one side, and is locked onto the shaft by tightening two (set) screws on the inner ring.

Quick and easy to mount onto the shaft
Long service life
Reduce noise and vibration levels

Documents

⤓ Technical data sheet PDF

All Features

Inner diameter: 25 mm
Width: 27,2 mm
Material (bearing): Steel
Material (cage): Plastic
High temperature: No
Bore type: Cylindrical
Inner ring extension: On one side
Outer diameter: 52 mm
Width, outer ring: 15
Basic static load rating: 7.8
Relubrication feature: With
Lubricant: Grease
Rubber seating ring: Without
Sealing type: Contact, standard
Cage: Non-metallic
Material, bearing: Bearing steel
Sealing: Seal on both sides
Rolling elements: Balls
Application: For material handling applications; For air handling applications
Retaining feature, inner ring: Set screws
Limiting speed: 7000
Outer ring type: Spherical
Width, total: 27.2
Width, inner ring: 27.2
Shaft diameter: 25
Bore diameter: 25
Basic dynamic load rating: 14
Coating: Without
Outer diameter: 52
Note: Limiting speed with shaft tolerance h6

Brand SKF
01190704
EAN 7316570707502
Supplier number SKF YAT 205

Frequently asked questions about this product

Answered by specialists

What shaft size is the SKF YAT 205 insert bearing designed for?: This bearing has a 25 mm bore diameter and fits cylindrical metric shafts.
How is this insert bearing secured onto the shaft?: It locks onto the shaft using set screws located on the extended inner ring.
What are the outer dimensions of this bearing?: It features an outside diameter of 52 mm and a total width of 27.2 mm.
Is this bearing suitable for alternating directions of rotation?: Yes, the set screw locking mechanism accommodates both constant and alternating rotational directions.
Is this SKF bearing rated for high-temperature applications?: No, this standard bearing steel model with a non-metallic cage is not rated for high temperatures.
