What shaft diameter is this insert bearing suitable for?

This bearing is suitable for a metric shaft with a diameter of 25 mm.

What are the main dimensions of the SKF YET 205?

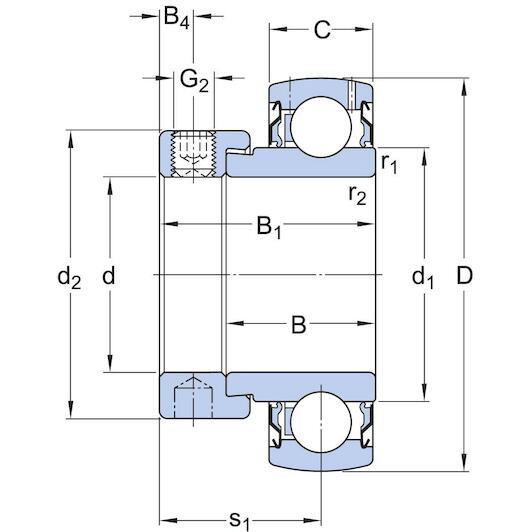

The bearing has an inside diameter of 25 mm, an outside diameter of 52 mm, and an inner ring width of 21.5 mm.

How do you mount this bearing onto the shaft?

You secure the bearing quickly and easily onto the shaft using the eccentric locking collar.

What rotation direction is this bearing designed for?

The eccentric locking collar is designed for applications with a constant direction of rotation.

What materials are used in this bearing?

The bearing is made of bearing steel and features a plastic cage.

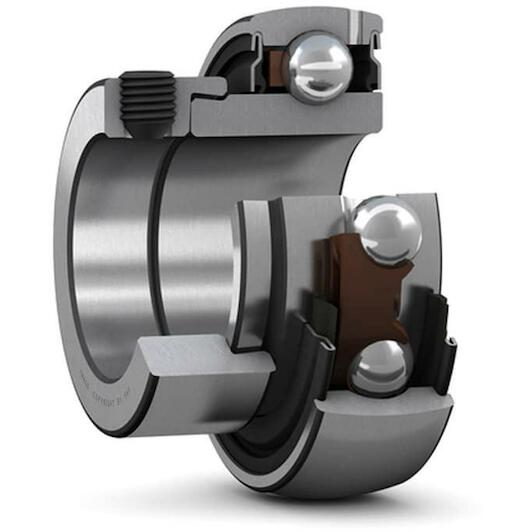

SKF YET 205 Y insert bearing cylindrical with eccentric ring for metric shaft, 25 x 52 mm

Supplier number: SKF YET 205 | EAN 7316577063052

Recommended Retail Price €65.07

32.20 tax incl.

€26.61 excl. VAT (incl. all environmental contributions)

On stock - immediately available

Ordered before 20:00 - delivered tomorrow 10/10/2026
Shipping costs €11.99 VAT included | Free shipping for orders over a total amount of 125 euros
Delivery by DHL

↓ Documents (1) ✆ Talk to a specialist

Dependable shaft support for single-direction applications with Skf

Practical benefits

Quick and secure mounting: You lock the bearing onto the shaft easily using the built-in eccentric collar.
Smooth and quiet operation: The non-metallic cage and steel balls effectively minimize vibration and operational noise.
Reliable dual contact sealing: Integrated seals on both sides retain lubricant and protect the internal components against debris.

In a nutshell

The right choise for

With the Skf yet 205 insert bearing, you achieve quick and reliable shaft mounting on conveyor rollers, agricultural equipment, or industrial machinery. The eccentric locking collar allows you to securely fasten the bearing onto a 25 mm metric shaft without slipping, making it ideal for setups with a constant direction of rotation. Its narrow inner ring enables easy installation in tight spaces. The steel ball design combined with a lightweight plastic cage delivers a smooth, quiet run with reduced vibrations, while integrated contact seals on both sides retain grease and keep contaminants out.

Product information FAQ

€32.20

In stock - tax incl.

Key features according to our expert

Inner diameter: 25 mm
Width: 21,5 mm
Material (bearing): Steel
Material (cage): Plastic
High temperature: No
Bore type: Cylindrical
Inner ring extension: On one side
Outer diameter: 52 mm

Product description

Insert bearings are based on sealed deep groove ball bearings. This variant is intended for use in applications where the direction of rotation is constant. It has a narrow inner ring extended on one side, with an eccentric locking collar, enabling quick and easy mounting onto the shaft.

Designed for rotation in one direction
Quick and easy to mount onto the shaft
Long service life
Reduce noise and vibration levels

Documents

⤓ Technical data sheet PDF

All Features

Inner diameter: 25 mm
Width: 21,5 mm
Material (bearing): Steel
Material (cage): Plastic
High temperature: No
Bore type: Cylindrical
Inner ring extension: On one side
Outer diameter: 52 mm
Width, outer ring: 15
Basic static load rating: 7.8
Relubrication feature: With
Lubricant: Grease
Rubber seating ring: Without
Sealing type: Contact, standard
Cage: Non-metallic
Material, bearing: Bearing steel
Sealing: Seal on both sides
Rolling elements: Balls
Application: For material handling applications; For air handling applications
Retaining feature, inner ring: Eccentric collar
Limiting speed: 7000
Outer ring type: Spherical
Width, total: 31
Width, inner ring: 21.5
Shaft diameter: 25
Bore diameter: 25
Basic dynamic load rating: 14
Coating: Without
Outer diameter: 52
Note: Limiting speed with shaft tolerance h6

Brand SKF
01190047
EAN 7316577063052
Supplier number SKF YET 205

Frequently asked questions about this product

Answered by specialists

What shaft diameter is this insert bearing suitable for?: This bearing is suitable for a metric shaft with a diameter of 25 mm.
What are the main dimensions of the SKF YET 205?: The bearing has an inside diameter of 25 mm, an outside diameter of 52 mm, and an inner ring width of 21.5 mm.
How do you mount this bearing onto the shaft?: You secure the bearing quickly and easily onto the shaft using the eccentric locking collar.
What rotation direction is this bearing designed for?: The eccentric locking collar is designed for applications with a constant direction of rotation.
What materials are used in this bearing?: The bearing is made of bearing steel and features a plastic cage.
