Which shaft diameter does this insert bearing fit?

This bearing fits a metric shaft with a diameter of 30 mm.

How is this bearing locked onto the shaft?

The extended inner ring is locked onto the shaft using two set screws.

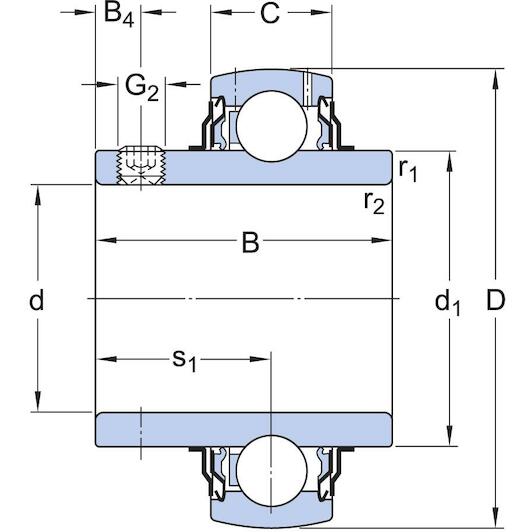

What are the main dimensions of this bearing?

It has a 30 mm bore diameter, a 62 mm outside diameter, and an overall width of 38.1 mm.

Is this SKF bearing suitable for alternating rotation directions?

Yes, this set screw locking design is suitable for both constant and alternating directions of rotation.

Is this bearing designed for high-temperature applications?

No, this standard steel insert bearing is not rated for high-temperature use.

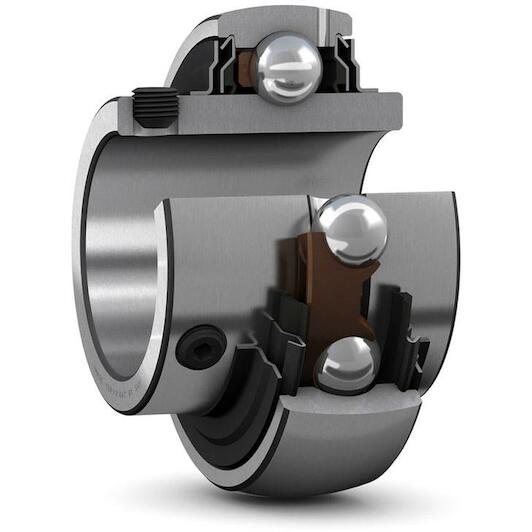

SKF YAR 206-2F Y insert bearing cylindrical with set screw for metric shaft, 30 x 62 mm

Supplier number: SKF YAR 206-2F | EAN 7316577027542

Recommended Retail Price €72.55

35.80 tax incl.

€29.59 excl. VAT (incl. all environmental contributions)

On stock - immediately available

Ordered before 20:00 - delivered tomorrow 10/10/2026
Shipping costs €11.99 VAT included | Free shipping for orders over a total amount of 125 euros
Delivery by DHL

↓ Documents (1) ✆ Talk to a specialist

Reliable shaft support for demanding machinery

Practical benefits

Quick and secure mounting: You mount the Skf YAR 206-2F directly onto the shaft using two set screws on the extended inner ring.
Constant and alternating rotation: You can operate this insert bearing effectively in systems with either single-direction or reversing rotational movements.
Protection against external contamination: Thanks to contact seals with flingers, you keep dirt out and maintain smooth rolling performance over time.

In a nutshell

The right choise for

With the Skf yar 206-2F insert bearing, you secure rotating shafts quickly and reliably in machinery and conveyor systems. Thanks to the inner ring extended on both sides, you achieve greater stability and reduce shaft tilting during operation. Integrated set screws clamp directly onto a 30 mm metric shaft, eliminating the need for adapter sleeves or interference fits. Built with a durable steel construction and a plastic cage, this bearing handles both constant and alternating rotation directions with ease. Integrated contact seals with flingers protect internal components from dirt, ensuring smooth performance in demanding industrial housings.

Product information FAQ

€35.80

In stock - tax incl.

Key features according to our expert

Inner diameter: 30 mm
Width: 38,1 mm
Material (bearing): Steel
Material (cage): Plastic
High temperature: No
Bore type: Cylindrical
Inner ring extension: On both sides
Outer diameter: 62 mm

Product description

Insert bearings are based on sealed deep groove ball bearings. This variant is suitable for applications with both constant and alternating directions of rotation. It has an inner ring extended on both sides and is locked onto the shaft by tightening two (set) screws on the inner ring, making it easy to mount.

Designed for a constant and alternating rotation
Quick and easy to mount onto the shaft
Reduce noise and vibration levels

Documents

⤓ Technical data sheet PDF

All Features

Inner diameter: 30 mm
Width: 38,1 mm
Material (bearing): Steel
Material (cage): Plastic
High temperature: No
Bore type: Cylindrical
Inner ring extension: On both sides
Outer diameter: 62 mm
Width, outer ring: 18
Basic static load rating: 11.2
Relubrication feature: With
Lubricant: Grease
Rubber seating ring: Without
Sealing type: Contact, standard
Cage: Non-metallic
Material, bearing: Bearing steel
Sealing: Seal and flinger on both sides
Rolling elements: Balls
Application: For material handling applications
Retaining feature, inner ring: Set screws
Limiting speed: 6300
Outer ring type: Spherical
Width, total: 38.1
Width, inner ring: 38.1
Shaft diameter: 30
Bore diameter: 30
Basic dynamic load rating: 19.5
Coating: Without
Outer diameter: 62
Note: Limiting speed with shaft tolerance h6

Brand SKF
01190039
EAN 7316577027542
Supplier number SKF YAR 206-2F

Frequently asked questions about this product

Answered by specialists

Which shaft diameter does this insert bearing fit?: This bearing fits a metric shaft with a diameter of 30 mm.
How is this bearing locked onto the shaft?: The extended inner ring is locked onto the shaft using two set screws.
What are the main dimensions of this bearing?: It has a 30 mm bore diameter, a 62 mm outside diameter, and an overall width of 38.1 mm.
Is this SKF bearing suitable for alternating rotation directions?: Yes, this set screw locking design is suitable for both constant and alternating directions of rotation.
Is this bearing designed for high-temperature applications?: No, this standard steel insert bearing is not rated for high-temperature use.
