SKF

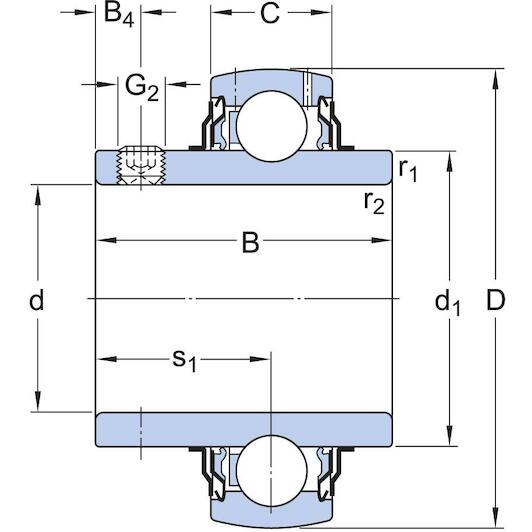

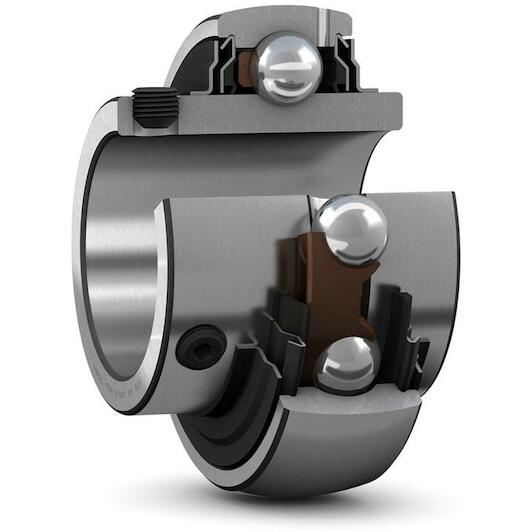

SKF YAR 209-110-2F Y insert bearing cylindrical with set screw for inch shaft, 41.3 x 85 mm

This article is not available

Product description:

  • SKF self-aligning thrust washer bearing for heavy duty (2F) or very heavy duty (-2RF) conditions.
  • Fixation on shaft by means of two socket-head screws on extended inner ring
  • Spherical outer ring with lubrication holes and inner ring extended on both sides
Key features according to our expert
  • Inner diameter: 41,275 mm
  • Width: 49,2 mm
  • Material (bearing): Steel
  • Material (cage): Plastic
  • High temperature: No
  • Bore type: Cylindrical
  • Inner ring extension: On both sides
  • Outer diameter: 85 mm
Specifications / All features
  • Brand: SKF
  • EAN: 7316576617164
  • Supplier number: SKF YAR 209-110-2F
Inner diameter
41,275 mm
Width
49,2 mm
Material (bearing)
Steel
Material (cage)
Plastic
High temperature
No
Bore type
Cylindrical
Inner ring extension
On both sides
Outer diameter
85 mm
Lubricant
Grease
Retaining feature, inner ring
Set screws
Basic static load rating
21.6 kN
Relubrication feature
With
Cage
Non-metallic
Rubber seating ring
Without
Width, outer ring
22 mm
Sealing type
Contact, standard
Outer ring type
Spherical
Material, bearing
Bearing steel
Sealing
Seal and flinger on both sides
Limiting speed
4,300 r/min
Note
Limiting speed with shaft tolerance h6
Width, total
49.2 mm
Width, inner ring
49.2 mm
Bore diameter
41.275 mm
Basic dynamic load rating
33.2 kN
Coating
Without
Outside diameter
85 mm
Rolling elements
Balls
