SKF

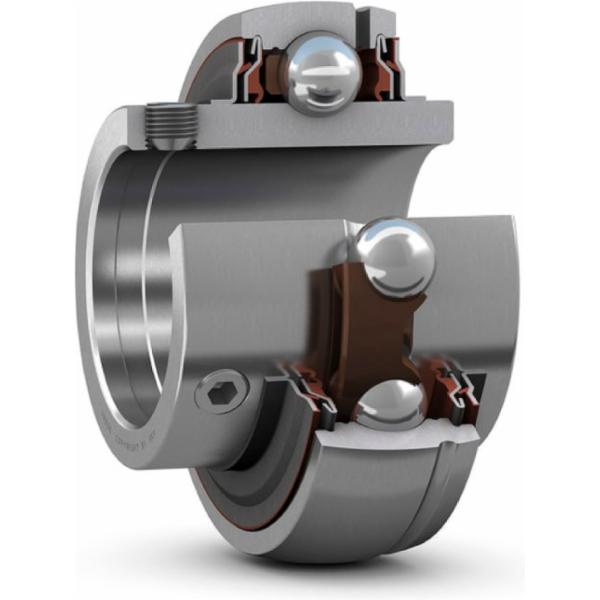

SKF YAR 206-103-2RF/HV Y insert bearing cylindrical with set screw for inch shaft, 30.2 x 62 mm

This article is not available

Product description:

  • SKF self-aligning thrust washer bearing for heavy duty (2F) or very heavy duty (-2RF) conditions.
  • Fixation on shaft by means of two socket-head screws on extended inner ring
  • Spherical outer ring with lubrication holes and inner ring extended on both sides
Key features according to our expert
  • Inner diameter: 30,162 mm
  • Width: 38,1 mm
  • Outer diameter: 62 mm
Specifications / All features
  • Brand: SKF
  • EAN: 7316570473940
  • Supplier number: SKF YAR 206-103-2RF/HV
Inner diameter
30,162 mm
Width
38,1 mm
Outer diameter
62 mm
Outer ring type
Spherical
Bore type
Cylindrical
Material, bearing
Stainless steel
Cage
Non-metallic
Sealing type
Contact, multiple
Width, outer ring
18 mm
Rubber seating ring
Without
Lubricant
Grease
Relubrication feature
With
Basic static load rating
11.2 kN
Retaining feature, inner ring
Set screws
Sealing
Seal and flinger on both sides
Width, total
38.1 mm
Note
Limiting speed with shaft tolerance h6
Width, inner ring
38.1 mm
Inner ring extension
On both sides
Limiting speed
3,800 r/min
Bore diameter
30.1625 mm
Basic dynamic load rating
16.3 kN
Coating
Without
Outside diameter
62 mm
Rolling elements
Balls
