skf-snld-3140-snld-3140
SKF

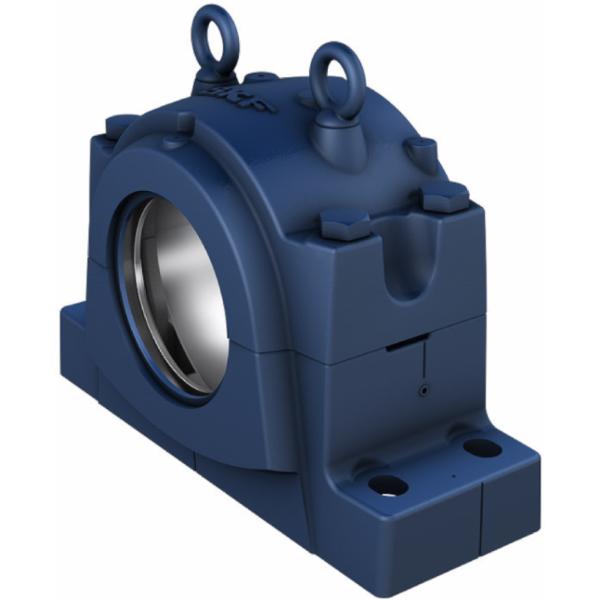

SKF SNLD 3140 standing bearing housing graphite cast iron two-piece 340 mm

This article is not available

Product description:

  • Split upright bearing housing for pendulum roller bearings
Key features according to our expert
  • Seat diameter: 340 mm
  • Material (bearing housing): Cast iron
Specifications / All features
  • Brand: SKF
  • EAN: 7316571680682
  • Supplier number: SKF SNLD 3140
Seat diameter
340 mm
Material (bearing housing)
Cast iron
Housing type
Plummer/pillow block
Centre height (pillow block)
210 mm
Housing configuration
Two-piece
Number of bolt holes for fasteners
4
Material, housing
Spheroidal graphite cast iron
Centre distance between bolt holes
510 mm
Centre distance between bolt holes (axial direction)
130 mm
Diameter of bearing seat
340 mm
Attachment bolt diameter
30 mm
Bearing housing seal type
Without
Mounting arrangement
Through shaft/Shaft end
Housing lubrication feature/possibility
Grease
Width of bearing seat
132 mm
