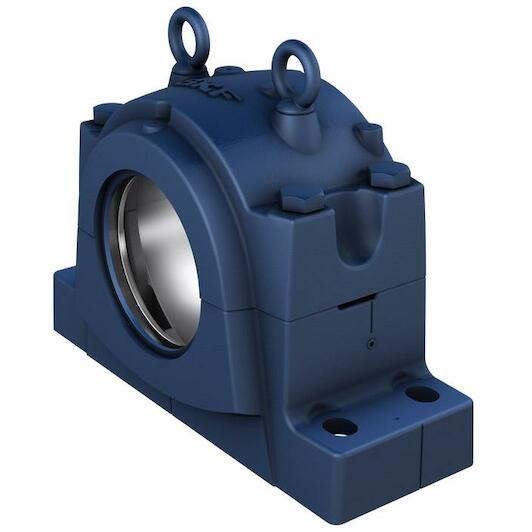

SKF SNL 3148 standing bearing housing cast iron two-piece 400 mm

Supplier number: SKF SNL 3148 | EAN 7316571680514
Recommended Retail Price €8,334.03
4,125.95 tax incl.
€3,409.88 excl. VAT (incl. all environmental contributions)
On order: delivered from 24/10/2026

  • Ordered before 20:00 - delivered as of 24/10/2026
  • Free shipping
  • Delivery by DHL


€4,125.95
tax incl.

Product information

Key features according to our expert

  • Seat diameter: 400 mm
  • Material (bearing housing): Cast iron

Product description

SNL plummer (pillow) block housings in the 30, 31 and 32 series are robust and suitable for tough operating conditions. They enable the incorporated bearings to achieve maximum service life with less need for maintenance. Different housing variants and seal designs are available, making the use of tailored housings virtually unnecessary and enabling cost-effective bearing arrangements to be made

  • Easy to install
  • Cost-effective bearing arrangement
  • Reduce maintenance
  • Minimize lubricant leakage

Documents

All Features

Seat diameter
400 mm
Material (bearing housing)
Cast iron
Tightening torque, attachment bolt
1310
Bearing housing seal type
Without
Eye bolt
M24
Material, housing
Cast iron
Tightening torque, cap bolt
400
Grease fill, 40%
3400
Grease fill, 20%
2200
Diameter of bearing seat
400
Centre height (pillow block)
240
Width of bearing seat
148
Housing type
Plummer/pillow block
Number of bolt holes for fasteners
4
Housing configuration
Two-piece
Centre distance between bolt holes
600
Centre distance between bolt holes (axial direction)
150
Attachment bolt diameter
30
Mounting arrangement
Through shaft/Shaft end
Fastening bolt hole type
With holes (unspecified type)
Housing lubrication feature/possibility
Grease
Cap bolt
M30x180
  • Brand SKF
  • EAN 7316571680514
  • Supplier number SKF SNL 3148
