SKF

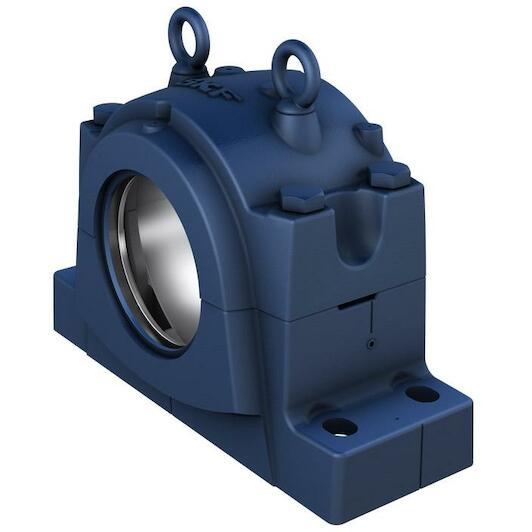

SKF SNL 3138 standing bearing housing cast iron two-piece 320 mm

Recommended Retail Price €6,689.42
3,311.80 tax incl.
€2,737.02 excl. VAT (incl. all environmental contributions)
On order: delivered from 30/05/2026
each

  • Ordered before 20:00 - delivered as of 30/05/2026
  • Free shipping
  • Delivery by DHL

Product description

SNL plummer (pillow) block housings in the 30, 31 and 32 series are robust and suitable for tough operating conditions. They enable the incorporated bearings to achieve maximum service life with less need for maintenance. Different housing variants and seal designs are available, making the use of tailored housings virtually unnecessary and enabling cost-effective bearing arrangements to be made

  • Easy to install
  • Cost-effective bearing arrangement
  • Reduce maintenance
  • Minimize lubricant leakage
Key features according to our expert
  • Seat diameter: 320 mm
  • Material (bearing housing): Cast iron
Specifications / All features
  • Brand: SKF
  • EAN: 7316571680408
  • Supplier number: SKF SNL 3138
Seat diameter
320 mm
Material (bearing housing)
Cast iron
Tightening torque, attachment bolt
665
Bearing housing seal type
Without
Eye bolt
M20
Material, housing
Cast iron
Tightening torque, cap bolt
350
Grease fill, 40%
1800
Grease fill, 20%
1200
Diameter of bearing seat
320
Centre height (pillow block)
190
Width of bearing seat
124
Housing type
Plummer/pillow block
Number of bolt holes for fasteners
4
Housing configuration
Two-piece
Centre distance between bolt holes
480
Centre distance between bolt holes (axial direction)
120
Attachment bolt diameter
24
Mounting arrangement
Through shaft/Shaft end
Fastening bolt hole type
With holes (unspecified type)
Housing lubrication feature/possibility
Grease
Cap bolt
M24x150
