SKF

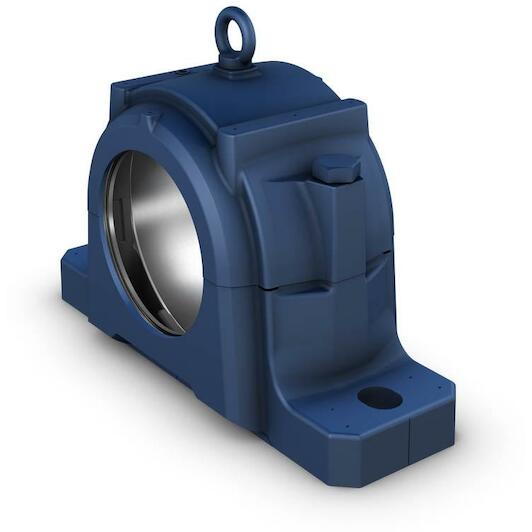

SKF SNL 524-620 standing bearing housing cast iron two-piece 215 mm

Recommended Retail Price €1,281.11
634.20 tax incl.
€524.13 excl. VAT (incl. all environmental contributions)
On stock, immediately available. we have 5 products in stock.
each

  • Ordered before 20:00 - delivered as of 16/05/2026
  • Free shipping
  • Delivery by DHL

Product description

SNL plummer (pillow) block housings are the most popular SKF bearing housings on the market, developed to be the first choice for design, quality and economy. They enable the incorporated bearings to achieve maximum service life with less need for maintenance. Different housing variants and seal designs are available, making the use of tailored housings virtually unnecessary and enabling cost-effective bearing arrangements to be made.

  • Easy to install
  • Cost-effective bearing arrangement
  • Reduce maintenance
  • Minimize lubricant leakage
Key features according to our expert
  • Seat diameter: 215 mm
  • Material (bearing housing): Cast iron
Specifications / All features
  • Brand: SKF
  • EAN: 7316570528282
  • Supplier number: SKF SNL 524-620
Seat diameter
215 mm
Material (bearing housing)
Cast iron
Tightening torque, attachment bolt
665
Bearing housing seal type
Without
Eye bolt
M10
Material, housing
Cast iron
Tightening torque, cap bolt
200
Grease fill, 40%
1000
Grease fill, 20%
630
Diameter of bearing seat
215
Centre height (pillow block)
140
Width of bearing seat
86
Housing type
Plummer/pillow block
Housing configuration
Two-piece
Number of bolt holes for fasteners
2
Centre distance between bolt holes
350
Attachment bolt diameter
24
Mounting arrangement
Through shaft/Shaft end
Fastening bolt hole type
With holes (unspecified type)
Housing lubrication feature/possibility
Grease
Cap bolt
M20x120
