SKF

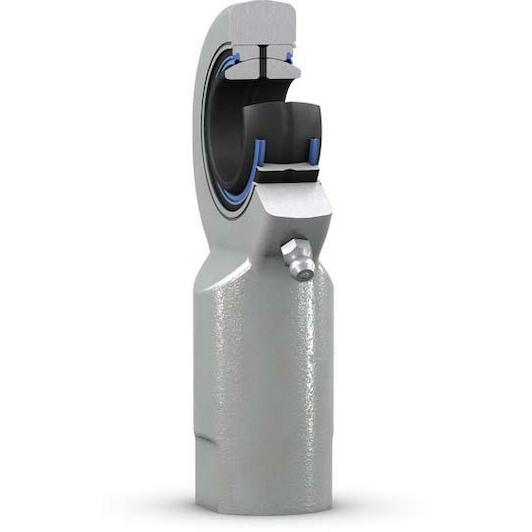

SKF SILA 40 ES-2RS rod head, requires maintenance, female thread

Recommended Retail Price €1,061.29
525.40 tax incl.
€434.21 excl. VAT (incl. all environmental contributions)
On order: delivered from 26/05/2026
each

  • Ordered before 20:00 - delivered as of 26/05/2026
  • Free shipping
  • Delivery by DHL

Product description

  • These SKF rod ends contain a spherical plain bearing with a steel/steel sliding contact surface combination and a double-lip contact seal on both sides. The bearing requires maintenance and can be relubricated via a grease fitting in the housing and via the shaft. The female thread is available with a left- (prefix SIL) or right-hand thread. Some sizes have different fitting dimensions (SIA series).

Avantages

  • Long service life
  • Minimal maintenance
  • Easy to relubricate
  • Suitable for heavy static, alternating or impact loads
  • Simple and ready-to-mount
Key features according to our expert
  • Inner diameter: 40 mm
  • Maintenance free: Nein
  • Seal (bearing): Double-sided sealed
Specifications / All features
  • Brand: SKF
  • EAN: 7316571097763
  • Supplier number: SKF SILA 40 ES-2RS
Inner diameter
40 mm
Maintenance free
Nein
Seal (bearing)
Double-sided sealed
Maintenance
Relubrication required
Thread designation
M 39x3
Attachment feature, rod end shank
Left-hand female thread
Material, outer ring
Bearing steel
Centre height, housing (from end of shank)
142 mm
Sealing type
Double-lip
Outside diameter, housing eye
94 mm
Bore diameter, bearing inner ring
40 mm
Basic static load rating
166 kN
Material, housing
Steel
Width, bearing inner ring
28 mm
Material, inner ring
Bearing steel
Sealing
Seal on both sides
Sliding contact surface combination
Steel/steel, standard
Width, housing eye
24 mm
Basic dynamic load rating
100 kN
Housing length, total
191 mm
