What thread type does this SKF rod end have?

This rod end has a metric M12 male thread with a right-hand thread direction.

What is the bore diameter of the bearing?

The bore diameter of the spherical plain bearing is 12 mm.

Is the SKF SA 12 E maintenance-free?

No, this steel-on-steel sliding surface model requires regular maintenance and relubrication.

Does this rod end have integrated seals?

No, the SA 12 E is an open design without seals.

What applications is this rod end suitable for?

It is suitable for mechanical linkages and pivot connections subject to heavy static or alternating loads.

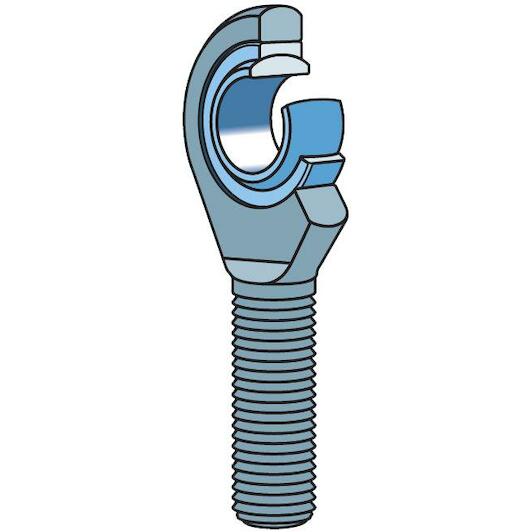

SKF SA 12 E Rod head with male thread 12 mm, M 12

Supplier number: SKF SA 12 E | EAN 7316577002549

Recommended Retail Price €119.14

58.80 tax incl.

€48.60 excl. VAT (incl. all environmental contributions)

On stock - immediately available | we have 2 products in stock.

Ordered before 20:00 - delivered tomorrow 08/10/2026
Shipping costs €11.99 VAT included | Free shipping for orders over a total amount of 125 euros
Delivery by DHL

↓ Documents (1) ✆ Talk to a specialist

Robust Skf rod end for heavy-duty linkages

Practical benefits

High dynamic load capacity: With a strong steel-on-steel sliding contact, you reliably handle alternating mechanical forces and heavy shock loads without issue.
Precise M12 male connection: The standard M12 male thread and 12 mm bore let you secure linkages or hydraulic cylinders with exact alignment.
Relubrication extends service life: You can easily relubricate the spherical bearing from the side to maintain smooth articulation and prevent premature wear.

In a nutshell

The right choise for

With the Skf sa 12 e rod end, you transfer heavy mechanical forces smoothly and accurately. Featuring a 12 mm bore and metric M12 male thread, it reliably handles high dynamic and alternating loads across linkage assemblies, mechanical transmissions, and cylinder mountings. The robust steel-on-steel sliding contact accommodates angular misalignments to prevent binding between moving machine components. Because you can easily relubricate this bearing from the side, you maintain smooth articulation and prevent premature wear throughout demanding industrial operations.

Product information FAQ

€58.80

In stock - tax incl.

Key features according to our expert

Inner diameter: 12 mm
Connection type: External thread
Thread type: Metric
Sealing (bearing): Without seals
Maintenance free: Nein
Connection size: M12

Product description

These SKF rod ends contain a spherical plain bearing with a steel/steel sliding contact surface combination. The bearing requires maintenance and can be relubricated only from the side. The male thread is available with a left- (prefix SAL) or right-hand thread.

Suitable for heavy static, alternating or impact loads
Simple and ready-to-mount

Documents

⤓ Technical data sheet PDF

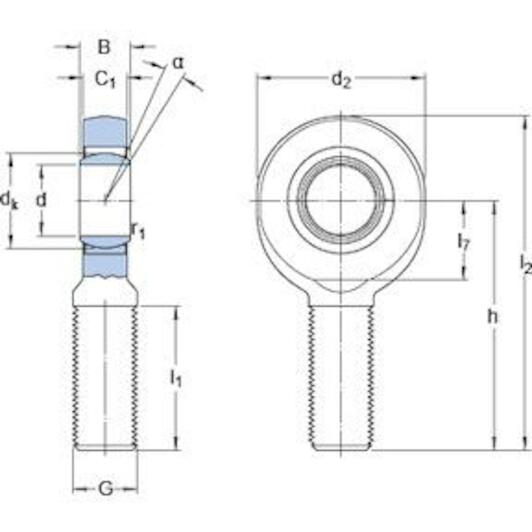

All Features

Inner diameter: 12 mm
Connection type: External thread
Thread type: Metric
Sealing (bearing): Without seals
Maintenance free: Nein
Connection size: M12
Bore diameter, bearing inner ring: 12
Attachment feature, rod end shank: Right-hand male thread
Material, housing: Steel
Sliding contact surface combination: Steel/steel, standard
Housing length, total: 73
Maintenance: Relubrication required
Thread designation: M 12
Material, outer ring: Bearing steel
Outside diameter, housing eye: 35
Sealing: Without
Basic static load rating: 24.5
Material, inner ring: Bearing steel
Width, bearing inner ring: 10
Width, housing eye: 8.5
Basic dynamic load rating: 10.8
Centre height, housing (from end of shank): 54

Brand SKF
01390157
EAN 7316577002549
Supplier number SKF SA 12 E

Frequently asked questions about this product

Answered by specialists

What thread type does this SKF rod end have?: This rod end has a metric M12 male thread with a right-hand thread direction.
What is the bore diameter of the bearing?: The bore diameter of the spherical plain bearing is 12 mm.
Is the SKF SA 12 E maintenance-free?: No, this steel-on-steel sliding surface model requires regular maintenance and relubrication.
Does this rod end have integrated seals?: No, the SA 12 E is an open design without seals.
What applications is this rod end suitable for?: It is suitable for mechanical linkages and pivot connections subject to heavy static or alternating loads.
