SKF

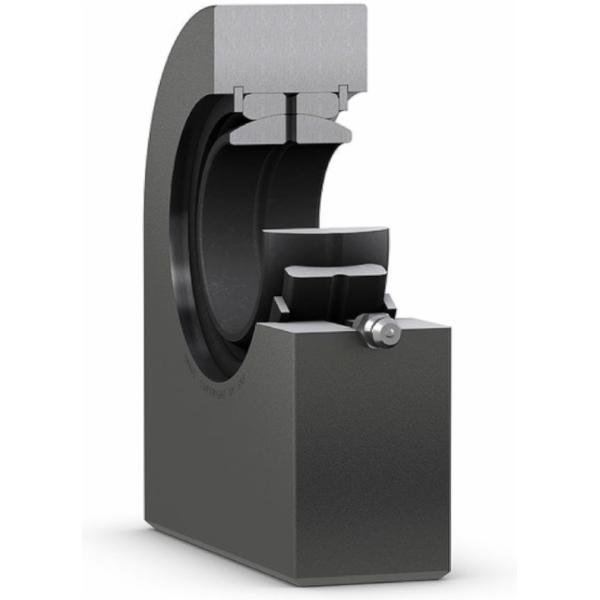

SKF SCF 80 ES rod head with welding neck 80 mm

This article is not available

Product description:

  • Welding shaft
  • Steel/steel
Key features according to our expert
  • Inner diameter: 80 mm
  • Seal (bearing): Without seal
  • Maintenance free: Nein
  • Thread type: Not applicable
Specifications / All features
  • Brand: SKF
  • EAN: 7316570303247
  • Supplier number: SKF SCF 80 ES
Inner diameter
80 mm
Seal (bearing)
Without seal
Maintenance free
Nein
Thread type
Not applicable
Maintenance
Relubrication required
Attachment feature, rod end shank
Rectangular section, for welding
Material, outer ring
Bearing steel
Centre height, housing (from end of shank)
141 mm
Outside diameter, housing eye
182.5 mm
Bore diameter, bearing inner ring
80 mm
Basic static load rating
750 kN
Material, housing
Steel
Sealing
Without
Material, inner ring
Bearing steel
Width, bearing inner ring
55 mm
Sliding contact surface combination
Steel/steel, standard
Width, housing eye
62 mm
Basic dynamic load rating
400 kN
Housing length, total
233.5 mm
