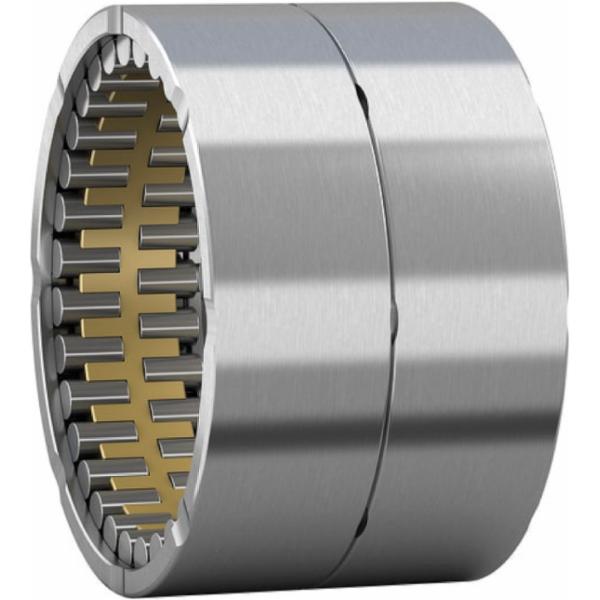

Product description:
- Cylindrical roller bearings have a high radial load carrying capacity and are capable of rotating at high speeds
- The rollers are guided by fixed track collars on one of the bearing rings
- The bearing ring with the track collars and roller set can be slid off from the other ring
- This makes mounting easier (especially if the bearing is to be mounted both on the shaft and on the bore with a fixed fit)
- A cylindrical roller bearing can withstand (limited) axial displacement
- Full complement cylindrical roller bearings: contain as many rollers as possible
- Double-row cylindrical roller bearing: consist of two rows of cylinders
Key features according to our expert
-
Inner diameter: 180 mm
-
Width: 130 mm
-
Number of rows: 4
-
Material (cage): Brass (solid)
-
Seal (bearing): Without seal
-
Material (bearing seal): Not applicable
-
Bore type: Cylindrical
-
Outer diameter: 230 mm
Specifications / All features
-
Brand:
SKF
-
02029013
-
EAN:
7316579524087
-
Supplier number:
SKF RBC4-0108
- Inner diameter
- 180 mm
- Width
- 130 mm
- Number of rows
- 4
- Material (cage)
- Brass (solid)
- Seal (bearing)
- Without seal
- Material (bearing seal)
- Not applicable
- Bore type
- Cylindrical
- Outer diameter
- 230 mm
- Basic static load rating
- 1,340 kN
- Bearing part
- Bearing without inner ring
- Loose flange
- None
- Lubricant
- None
- Relubrication feature
- Without
- Reference speed
- 2,000 r/min
- Skf performance class
- SKF Explorer
- Sealing
- Without
- Cage
- Machined metal
- Locating feature, bearing outer ring
- None
- Basic dynamic load rating
- 965 kN
- Number of flanges, outer ring
- 5
- Limiting speed
- 3,000 r/min
- Bore diameter
- 180 mm
- Coating
- Without
- Outside diameter
- 230 mm
