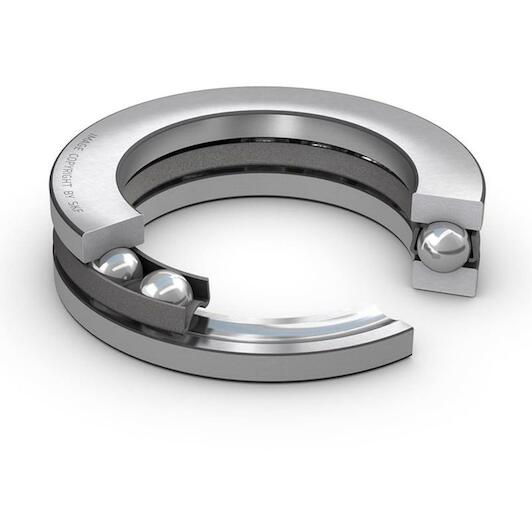

SKF 51211 ball roller bearing single acting 55x90 mm

Supplier number: SKF 51211 | EAN 7316577058485

Recommended Retail Price €163.62

80.95 tax incl.

€66.90 excl. VAT (incl. all environmental contributions)

On stock - immediately available | we have 7 products in stock.

Ordered before 20:00 - delivered as of 30/09/2026
Shipping costs €6.99 VAT included | Free shipping for orders over a total amount of 125 euros
Delivery by DHL

↓ Documents (1) ✆ Talk to a specialist

High axial capacity with Skf

Practical benefits

Unidirectional axial load handling: You reliably accommodate pure axial loads in a single direction to keep rotating shafts aligned.
Separable components for installation: The separable design allows you to mount the shaft washer, housing washer, and cage individually.
Brass cage durability: A sturdy sheet brass cage keeps rolling elements perfectly spaced for consistent, low-friction operation.

In a nutshell

The right choise for

With the Skf 51211 single-direction thrust ball bearing, you keep 55 mm rotating shafts securely aligned under heavy axial loads. Engineered to accommodate pure axial forces in one direction, it prevents shaft displacement and excessive friction across gearboxes, pumps, jacks, and turntables. The robust sheet brass cage keeps rolling elements evenly spaced for smooth rotation and consistent performance under demanding conditions. Thanks to its separable design, installation and maintenance inspections are straightforward, allowing you to mount the shaft washer, housing washer, and ball assembly individually with ease.

Product information FAQ

€80.95

In stock - tax incl.

Key features according to our expert

Inner diameter: 55 mm
Width: 25 mm
Number of rows: 1
Material (cage): Brass (sheet)
Outer diameter: 90 mm

Product description

Single direction thrust ball bearings can accommodate axial loads in one direction. They must not be subjected to any radial load. Their separable components facilitate mounting/dismounting and maintenance inspections. Many of the components are interchangeable. The shaft washers have a ground bore that enables an interference fit.

Avantages

Separable design facilitates mounting/dismounting and maintenance inspections
Interchangeable components
Ground bore of shaft washers enable interference fit

Documents

⤓ Technical data sheet PDF

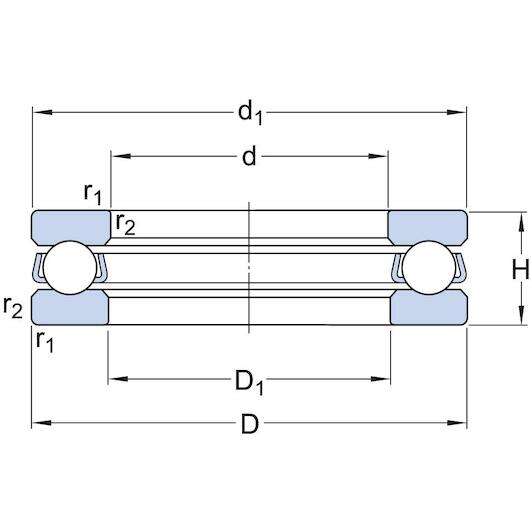

All Features

Inner diameter: 55 mm
Width: 25 mm
Number of rows: 1
Material (cage): Brass (sheet)
Outer diameter: 90 mm
Bore diameter: 55
Cage: Sheet metal
Housing washer type: Flat
Reference speed: 2800
Basic static load rating: 134
Tolerance class: Normal
Limiting speed: 4000
Axial load capability: Single-direction
Coating: Without
Basic dynamic load rating: 58.5
Height: 25
Outside diameter: 90
Material, bearing: Bearing steel

Brand SKF
01130048
EAN 7316577058485
Supplier number SKF 51211

Frequently asked questions about this product

Answered by specialists

What types of loads can the SKF 51211 thrust ball bearing accommodate?: This bearing is designed to support axial loads in one direction only. It cannot accommodate radial loads.
What are the exact dimensions of this thrust ball bearing?: The bearing has an inner diameter of 55 mm, an outer diameter of 90 mm, and a width of 25 mm.
Is this bearing separable for easier mounting?: Yes, it features a separable design. You can mount the shaft washer, housing washer, and ball and cage assembly individually.
Can this bearing compensate for shaft misalignment?: No, the housing washer has a flat seating surface and cannot accommodate misalignment between the shaft and housing.
