SKF

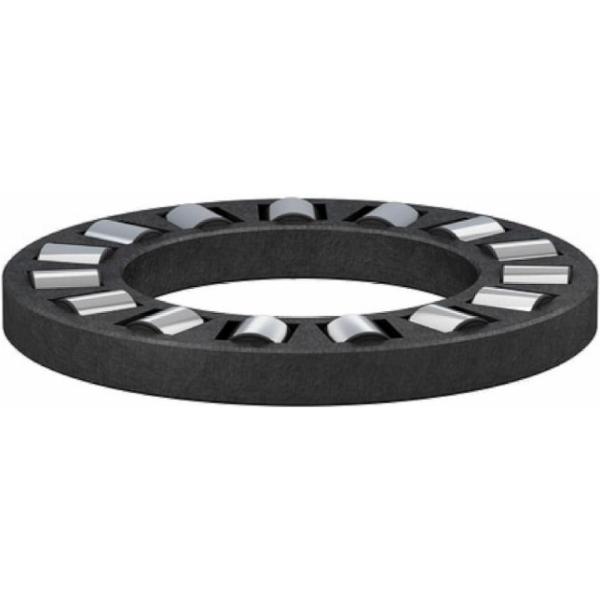

SKF K 81120 TN axial roller cage single-sided working 100 x 135 mm

This article is not available

Product description:

  • Axial roller bearing, with a polymide 6.6 cage, centred on the rollers
  • Cylindrical roller thrust bearings are suitable for setups that need to accommodate high axial loads
  • This type of bearing enables rigid shaft supports
Key features according to our expert
  • Inner diameter: 100 mm
  • Width: 11 mm
  • Outer diameter: 135 mm
Specifications / All features
  • Brand: SKF
  • EAN: 7316577310545
  • Supplier number: SKF K 81120 TN
Inner diameter
100 mm
Width
11 mm
Outer diameter
135 mm
Bore diameter
100 mm
Cage
Non-metallic
Reference speed
1,200 r/min
Basic static load rating
630 kN
Tolerance class
Normal
Bearing part
Roller and cage assembly
Limiting speed
2,400 r/min
Axial load capability
Single-direction
Basic dynamic load rating
156 kN
Number of rows
1
Coating
Without
Thickness
11 mm
Outside diameter
135 mm
Material, bearing
Bearing steel
