SKF

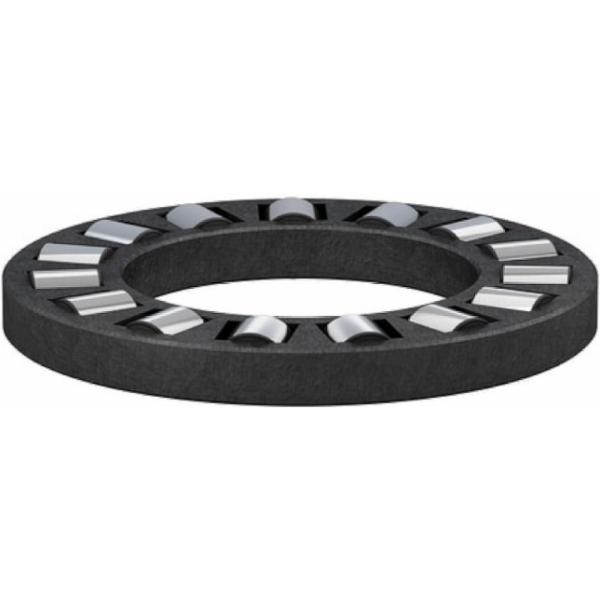

SKF K 81104 TN axial roller crown single-sided working 20 x 35 mm

This article is not available

Product description:

  • Axial roller bearing, with a polymide 6.6 cage, centred on the rollers
  • Cylindrical roller thrust bearings are suitable for setups that need to accommodate high axial loads
  • This type of bearing enables rigid shaft supports
Key features according to our expert
  • Inner diameter: 20 mm
  • Width: 4,5 mm
  • Outer diameter: 35 mm
Specifications / All features
  • Brand: SKF
  • EAN: 7316577030429
  • Supplier number: SKF K 81104 TN
Inner diameter
20 mm
Width
4,5 mm
Outer diameter
35 mm
Bore diameter
20 mm
Cage
Non-metallic
Reference speed
3,800 r/min
Basic static load rating
48 kN
Tolerance class
Normal
Bearing part
Roller and cage assembly
Limiting speed
7,500 r/min
Axial load capability
Single-direction
Basic dynamic load rating
18.6 kN
Number of rows
1
Coating
Without
Thickness
4.5 mm
Outside diameter
35 mm
Material, bearing
Bearing steel
