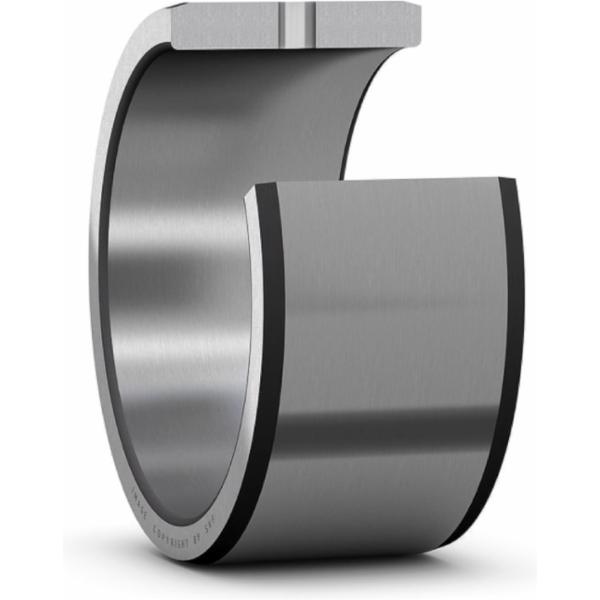

SKF IR 25X30X16 IS1 inner ring for needle roller bearing 25 x 30 x 16 mm

Supplier number: SKF IR 25X30X16 IS1 | EAN 7316570378238
This product has been discontinued.



Product information

Key features according to our expert

  • Inner diameter: 25 mm
  • Width: 16 mm
  • Outer diameter: 30 mm

Product description:

  • Inner rings in the IR series are the standard SKF inner rings for needle roller bearings
  • They are made of carbon chrome bearing steel that is hardened and ground
  • The raceway surface, which is precision finished, has a lead-in chamfer on both sides to simplify assembly
  • The chamfer also protects the sealing tabs from damage during the assembly process

All Features

Inner diameter
25 mm
Width
16 mm
Outer diameter
30 mm
Coating
Without
Relubrication feature
With
Radial internal clearance
CN
Tolerance class
Normal
Raceway diameter
30 mm
Bore diameter
25 mm
Material
Bearing steel
Outer diameter
30 mm
Special raceway feature
None
  • Brand SKF
  • EAN 7316570378238
  • Supplier number SKF IR 25X30X16 IS1
