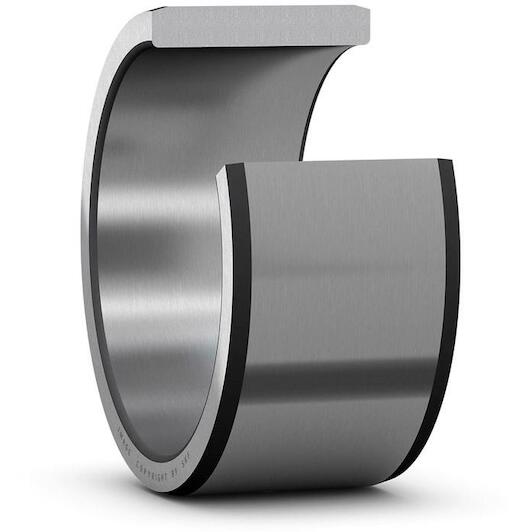

SKF IR 30X35X30 inner ring for needle roller bearing 30 x 35 x 30 mm

Supplier number: SKF IR 30X35X30 | EAN 7316577010919

Recommended Retail Price €46.13

22.60 tax incl.

€18.68 excl. VAT (incl. all environmental contributions)

On stock - immediately available | we have 4 products in stock.

Ordered before 20:00 - delivered tomorrow 29/09/2026
Shipping costs €11.99 VAT included | Free shipping for orders over a total amount of 125 euros
Delivery by DHL

↓ Documents (1) ✆ Talk to a specialist

Reliable raceway for needle bearings

Practical benefits

Skf inner ring protection: You obtain a precision raceway without needing to harden or grind the shaft surface.
Smooth radial rotation: The precision-ground finish minimizes friction and ensures consistent needle roller performance.
Straightforward assembly process: Standardized dimensions allow you to quickly install and exchange the ring during maintenance.

In a nutshell

The right choise for

With the Skf ir 30X35X30 inner ring, you create a precision hardened raceway for needle roller bearings on a 30 mm shaft. This eliminates the need to harden or grind the shaft itself, effectively preventing direct wear on critical drive components. Featuring an outer diameter of 35 mm and a width of 30 mm, this ir series ring provides reliable support for needle roller assemblies in compact radial spaces. Additionally, it accommodates axial displacement in both directions and enables fast, straightforward replacement during maintenance.

Product information FAQ

€22.60

In stock - tax incl.

Key features according to our expert

Inner diameter: 30 mm
Outer diameter: 35 mm
Width: 30 mm

Product description

Inner rings for needle roller bearings are available as separate components. They are typically combined with needle roller and cage assemblies or drawn cup needle roller bearings in applications where the shaft cannot be hardened and ground. The inner rings in the IR series are the standard SKF inner rings for needle roller bearings.

Enable full interchangeability of inner rings
Standard SKF inner rings for needle roller bearings
Accommodate axial displacement in both directions

Documents

⤓ Technical data sheet PDF

All Features

Inner diameter: 30 mm
Outer diameter: 35 mm
Width: 30 mm
Relubrication feature: Without
Radial internal clearance: CN
Tolerance class: Normal
Raceway diameter: 35
Bore diameter: 30
Coating: Without
Material: Bearing steel
Outside diameter: 35
Special raceway feature: None

Brand SKF
01290536
EAN 7316577010919
Supplier number SKF IR 30X35X30

Frequently asked questions about this product

Answered by specialists

What are the dimensions of this inner ring?: The ring has an inner diameter of 30 mm, an outer diameter of 35 mm, and a width of 30 mm.
What is the SKF IR 30X35X30 inner ring used for?: It provides a precision raceway for needle roller bearings when the shaft cannot be hardened and ground.
Which series does this inner ring belong to?: This component belongs to the standard SKF IR series for needle roller bearings.
Does this ring accommodate axial displacement?: Yes, inner rings in the IR series accommodate axial displacement in both directions.
What shaft diameter is required for installation?: This inner ring is designed to fit on a shaft with a diameter of 30 mm.
