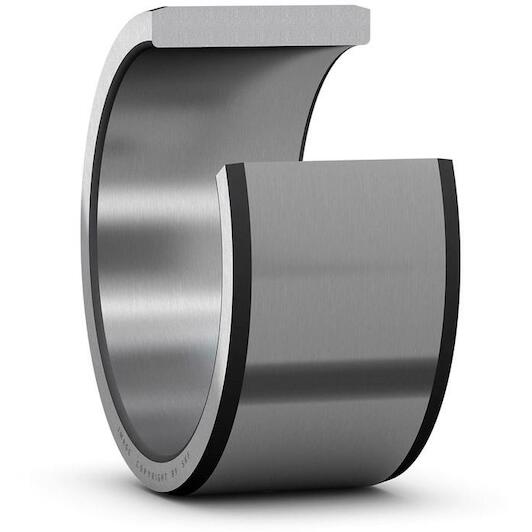

SKF IR 55X63X45 inner ring for needle roller bearing 55 x 63 x 45 mm

Supplier number: SKF IR 55X63X45 | EAN 7316570689938
Recommended Retail Price €102.79
50.80 tax incl.
€41.98 excl. VAT (incl. all environmental contributions)
On stock - immediately available

  • Ordered before 20:00 - delivered tomorrow 24/11/2026
  • Shipping costs €11.99 VAT included | Free shipping for orders over a total amount of 75 euros
  • Delivery by DHL

Hardened raceway with Skf ir 55X63X45

Practical benefits
  • Precision ground surface: You create a hardened, wear-resistant raceway for needle roller assemblies on shafts that cannot be heat-treated.
  • Dual axial displacement: The wide ring accommodates axial shaft movement in both directions to maintain smooth running inside mechanical gearboxes.
  • Lead-in chamfer protection: Precision chamfers on both ends guide the component onto the shaft without damaging surrounding oil seals.

In a nutshell

The right choise for

When your shaft cannot be hardened or ground, the Skf ir 55X63X45 inner ring provides a wear-resistant raceway for needle roller assemblies. This prevents shaft damage and premature wear inside heavy-duty industrial transmissions and gearboxes.

Engineered from bearing steel with a 55 mm bore, 63 mm outer diameter, and 45 mm width, the ring accommodates axial shaft movement in both directions. Precision lead-in chamfers on both ends guide the ring smoothly onto the shaft to safeguard delicate seal lips during installation.



€50.80
In stock - tax incl.

Product information

Key features according to our expert

  • Inner diameter: 55 mm
  • Outer diameter: 63 mm
  • Width: 45 mm

Product description

  • Inner rings for needle roller bearings are available as separate components. They are typically combined with needle roller and cage assemblies or drawn cup needle roller bearings in applications where the shaft cannot be hardened and ground. The inner rings in the IR series are the standard SKF inner rings for needle roller bearings. They are hardened and ground and have a precision ground raceway surface with a lead-in chamfer on both sides.

Avantages

  • Enable full interchangeability of inner rings
  • Standard SKF inner rings for needle roller bearings
  • Accommodate axial displacement in both directions
  • Chamfers facilitate assembly and protect seal lips during mounting

Documents

All Features

Inner diameter
55 mm
Outer diameter
63 mm
Width
45 mm
Relubrication feature
Without
Radial internal clearance
CN
Tolerance class
Normal
Raceway diameter
63 mm
Bore diameter
55 mm
Coating
Without
Material
Bearing steel
Outside diameter
63 mm
Special raceway feature
None
  • Brand SKF
  • EAN 7316570689938
  • Supplier number SKF IR 55X63X45

Frequently asked questions about this product

Answered by specialists
What are the exact dimensions of this inner ring?
The ring has a bore diameter of 55 mm, an outside diameter of 63 mm, and a width of 45 mm.
When should you use a separate inner ring for needle roller bearings?
You fit an inner ring when the shaft cannot be hardened and ground to serve as a raceway.
Does this model feature a lubrication hole?
No, this variant does not have a lubrication hole or relubrication feature.
What purpose do the lead-in chamfers serve?
Chamfers ease mounting onto the shaft and protect seal lips against damage during assembly.
