SKF

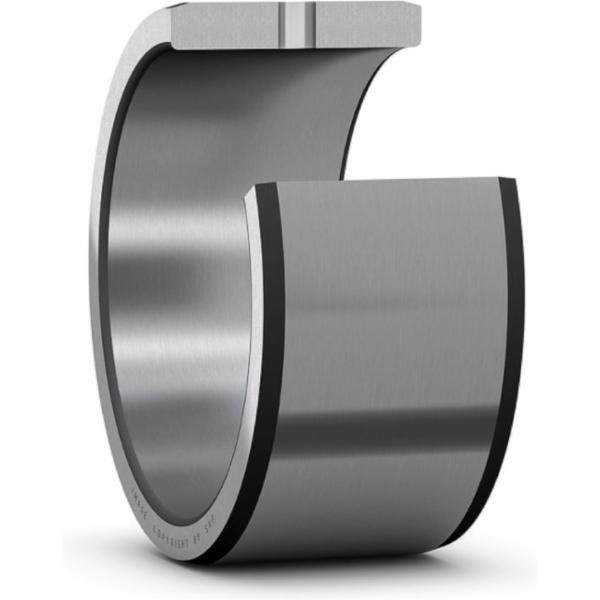

SKF IR 10X14X12 IS1 inner ring for needle roller bearing 10 x 14 x 12 mm

This article is not available

Product description:

  • Inner rings in the IR series are the standard SKF inner rings for needle roller bearings
  • They are made of carbon chrome bearing steel that is hardened and ground
  • The raceway surface, which is precision finished, has a lead-in chamfer on both sides to simplify assembly
  • The chamfer also protects the sealing tabs from damage during the assembly process
Key features according to our expert
  • Inner diameter: 10 mm
  • Width: 12 mm
  • Outer diameter: 14 mm
Specifications / All features
  • Brand: SKF
  • EAN: 7316571060194
  • Supplier number: SKF IR 10X14X12 IS1

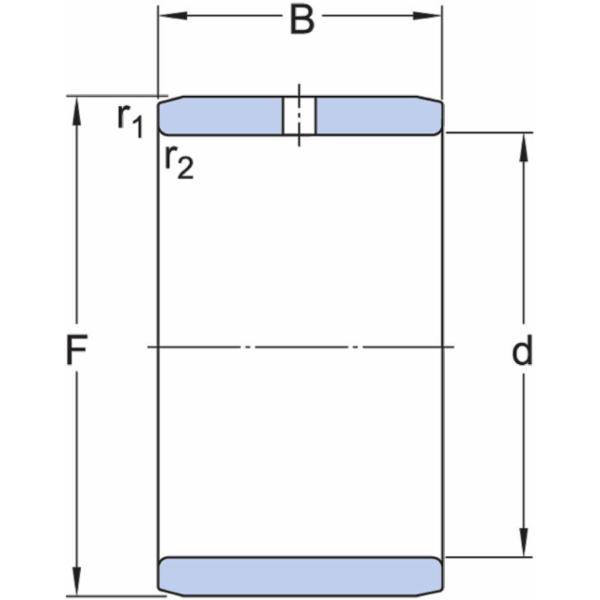

Inner diameter
10 mm
Width
12 mm
Outer diameter
14 mm
Coating
Without
Relubrication feature
With
Radial internal clearance
CN
Tolerance class
Normal
Raceway diameter
14 mm
Bore diameter
10 mm
Material
Bearing steel
Outside diameter
14 mm
Special raceway feature
None
