What are the dimensions of this needle roller thrust bearing?

This bearing has an inside diameter of 20 mm, an outside diameter of 35 mm, and a thickness of 2 mm.

What loads can the SKF AXK 2035 accommodate?

It is designed to accommodate heavy axial loads acting in one direction.

What material is the cage made of?

The cage of this needle roller assembly is made of sheet steel.

Can this bearing run directly against machine components?

Yes, if adjacent machine faces are hardened and ground to act as raceways. Otherwise, use matching bearing washers.

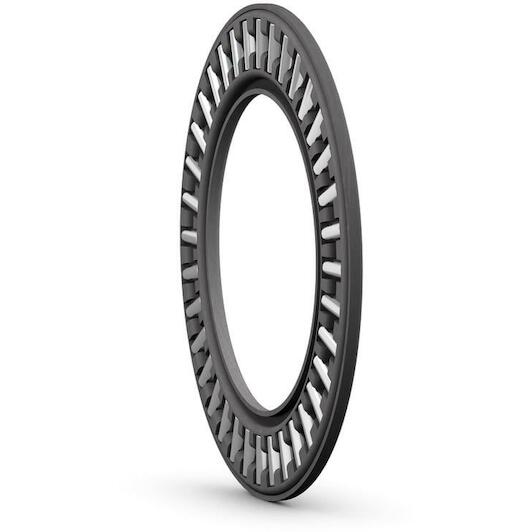

SKF AXK 2035 needle roller bearing 20 x 35 mm

Supplier number: SKF AXK 2035 | EAN 7316577013811

4.73 tax incl.

€3.91 excl. VAT (incl. all environmental contributions)

On stock - immediately available | we have 4 products in stock.

Ordered before 20:00 - delivered tomorrow 09/10/2026
Shipping costs €11.99 VAT included | Free shipping for orders over a total amount of 125 euros
Delivery by DHL

↓ Documents (1) ✆ Talk to a specialist

Compact axial support with Skf

Practical benefits

Minimal axial space required: With a 2 mm thickness, you achieve reliable thrust bearing performance in extremely tight spaces.
High axial load capacity: The needle rollers accommodate heavy axial forces and peak loads in one direction with high stiffness.
Durable sheet steel cage: The pressed steel cage guides the rollers precisely to ensure smooth operation and extended service life.

In a nutshell

The right choise for

With the Skf axk 2035 needle roller thrust bearing, you achieve an exceptionally compact and rigid axial bearing arrangement in tight installations. Featuring an ultra-slim thickness of just 2 mm, this assembly fits effortlessly into restricted spaces such as machine tool spindles, gearboxes, and rotary units. Engineered with a 20 mm inside diameter, a 35 mm outside diameter, and a durable sheet steel cage, it provides precise roller guidance for smooth operation. It reliably accommodates heavy unidirectional thrust loads and peak forces while minimizing friction. You can run it directly against hardened and ground machine components or pair it with matching thrust washers for dependable long-term performance.

Product information FAQ

€4.73

In stock - tax incl.

Key features according to our expert

Inner diameter: 20 mm
Thickness: 2 mm
Material (cage): Sheet steel
Outer diameter: 35 mm

Product description

Needle roller and cage thrust assemblies are designed to accommodate heavy axial loads and peak loads in one direction. They provide a high degree of stiffness within a minimum axial space. In applications where the faces of adjacent machine components serve as raceways, needle roller thrust bearings take up no more space than a conventional thrust washer. The bearings can also be combined with bearing washers to create complete bearings.

High axial load carrying capacity
High stiffness
Long service life
Require minimal axial space
Can be combined with bearing washers

Documents

⤓ Technical data sheet PDF

All Features

Inner diameter: 20 mm
Thickness: 2 mm
Material (cage): Sheet steel
Outer diameter: 35 mm
Bore diameter: 20
Material, bearing: Bearing steel
Cage: Sheet steel
Reference speed: 4300
Basic static load rating: 47.5
Bearing part: Needle roller and cage assembly
Limiting speed: 8500
Height: 2
Basic dynamic load rating: 12
Coating: Without
Outer diameter: 35
Roller grade: G2

Brand SKF
01290569
EAN 7316577013811
Supplier number SKF AXK 2035

Frequently asked questions about this product

Answered by specialists

What are the dimensions of this needle roller thrust bearing?: This bearing has an inside diameter of 20 mm, an outside diameter of 35 mm, and a thickness of 2 mm.
What loads can the SKF AXK 2035 accommodate?: It is designed to accommodate heavy axial loads acting in one direction.
What material is the cage made of?: The cage of this needle roller assembly is made of sheet steel.
Can this bearing run directly against machine components?: Yes, if adjacent machine faces are hardened and ground to act as raceways. Otherwise, use matching bearing washers.
