SKF

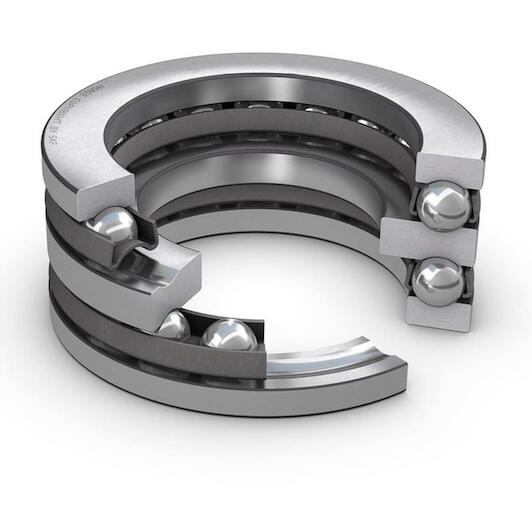

SKF 52313 double-sided roller bearing 55x115 mm

This article is not available

Product description:

  • Single-sided ball thrust bearings consist of a shaft ring, a housing ring and a cage with balls
  • The bearings are removable so that the ring and ball cage can easily be fitted separately
  • Single-sided spherical roller bearings, as their name suggests , can take axial loads in one direction and thus trap a shaft in one direction
  • They may not be subjected to radial loads
Key features according to our expert
  • Inner diameter: 55 mm
  • Width: 64 mm
  • Number of rows: 2
  • Material (cage): Brass (sheet)
  • Outer diameter: 115 mm
Specifications / All features
  • Brand: SKF
  • EAN: 7316577121349
  • Supplier number: SKF 52313
Inner diameter
55 mm
Width
64 mm
Number of rows
2
Material (cage)
Brass (sheet)
Outer diameter
115 mm
Bore diameter
55 mm
Cage
Sheet metal
Housing washer type
Flat
Reference speed
1,600 r/min
Basic static load rating
240 kN
Tolerance class
Normal
Limiting speed
2,200 r/min
Axial load capability
Double-direction
Coating
Without
Basic dynamic load rating
106 kN
Thickness
64 mm
Outside diameter
115 mm
Material, bearing
Bearing steel
