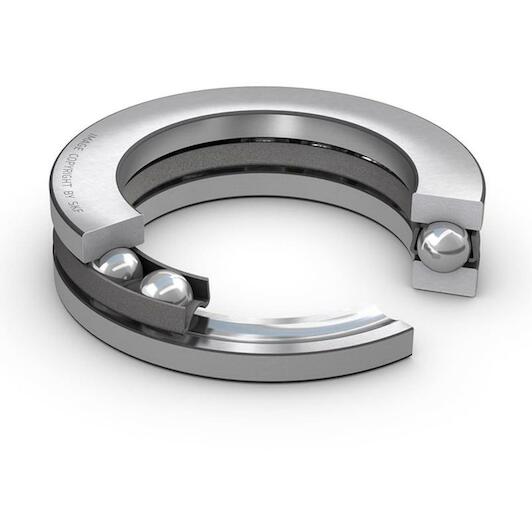

SKF 51104 ball roller bearing single acting 20x35 mm

Supplier number: SKF 51104 | EAN 7316577058652

Recommended Retail Price €37.34

18.40 tax incl.

€15.21 excl. VAT (incl. all environmental contributions)

On stock - immediately available

Ordered before 20:00 - delivered tomorrow 29/09/2026
Shipping costs €11.99 VAT included | Free shipping for orders over a total amount of 125 euros
Delivery by DHL

↓ Documents (1) ✆ Talk to a specialist

Efficient axial support in machinery

Practical benefits

Dependable single direction support: Handle unidirectional thrust loads securely with the Skf thrust ball bearing in your assembly.
Easy separable component mounting: You install, remove, and inspect individual parts easily thanks to the separable component design.
Smooth and low friction: The precise ball guidance ensures you maintain quiet rotation and reduced friction under axial force.

In a nutshell

The right choise for

With the Skf 51104 thrust ball bearing, you securely handle unidirectional thrust loads in your mechanical assemblies. Designed with a 20 mm bore, 35 mm outside diameter, and 10 mm width, this single-direction bearing prevents shaft displacement while maintaining smooth rotation under axial compressive forces. The precise ball guidance within the brass cage minimizes friction and ensures dependable, quiet running. Thanks to the separable design, you can easily mount, dismount, and inspect the shaft washer, housing washer, and ball cage assembly during maintenance or assembly on industrial machinery and drives.

Product information FAQ

€18.40

In stock - tax incl.

Key features according to our expert

Inner diameter: 20 mm
Width: 10 mm
Number of rows: 1
Material (cage): Brass (sheet)
Outer diameter: 35 mm

Product description

Single direction thrust ball bearings can accommodate axial loads in one direction. They must not be subjected to any radial load. Their separable components facilitate mounting/dismounting and maintenance inspections. Many of the components are interchangeable. The shaft washers have a ground bore that enables an interference fit.

Avantages

Separable design facilitates mounting/dismounting and maintenance inspections
Interchangeable components
Ground bore of shaft washers enable interference fit

Documents

⤓ Technical data sheet PDF

All Features

Inner diameter: 20 mm
Width: 10 mm
Number of rows: 1
Material (cage): Brass (sheet)
Outer diameter: 35 mm
Bore diameter: 20
Cage: Sheet metal
Housing washer type: Flat
Reference speed: 7500
Basic static load rating: 29
Tolerance class: Normal
Limiting speed: 10000
Axial load capability: Single-direction
Coating: Without
Basic dynamic load rating: 15.1
Height: 10
Outside diameter: 35
Material, bearing: Bearing steel

Brand SKF
01130005
EAN 7316577058652
Supplier number SKF 51104

Frequently asked questions about this product

Answered by specialists

What are the exact dimensions of the Skf 51104 thrust ball bearing?: The bearing has a 20 mm bore diameter, a 35 mm outside diameter, and a width of 10 mm.
What type of load can this thrust ball bearing accommodate?: This single-direction bearing is designed to support axial loads in one direction only.
Can the 51104 bearing handle radial loads?: No, this thrust ball bearing is strictly intended for axial loads and must not be subjected to radial forces.
Is the bearing separable for easier mounting?: Yes, the separable design allows the shaft washer, housing washer, and ball and cage assembly to be mounted individually.
What material is the cage made of?: The cage of this bearing is made of sheet brass.
