Product Description:

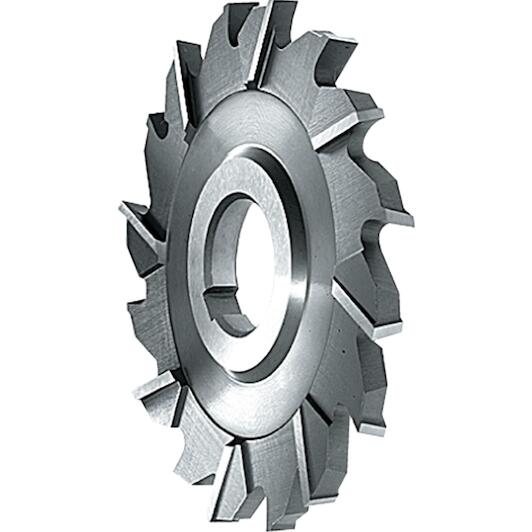

- Phantom HSS-E DIN 885 A staggered teeth
- DIN 885 A, type N
Supplier number:
PHANTOM 382101220
|
EAN
8716563380610
584.05
tax incl.
€482.69 excl. VAT (incl. all environmental contributions)
Product information
Key features according to our expert
- Diameter: 125 mm
- Bore size: 32 mm
- Shape (side and face cutter): Flat cross toothing
- Height: 20 mm
All Features
- Diameter
- 125 mm
- Bore size
- 32 mm
- Shape (side and face cutter)
- Flat cross toothing
- Height
- 20 mm

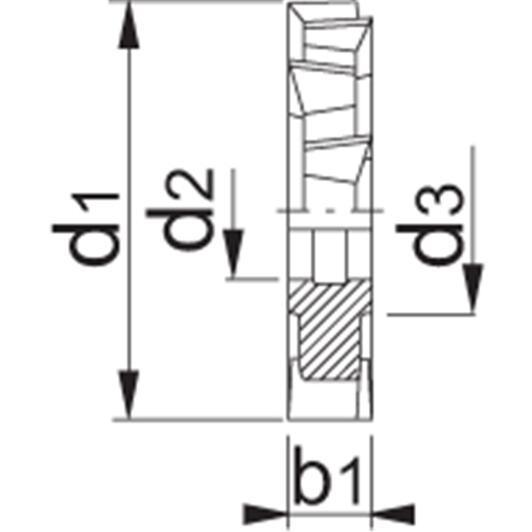

- Bore ø (d2)
- 32 mm
- Number of flutes (z)
- 22
- Diameter ø (d1)
- 125 mm
- Tolerance d2 (tol. d2)
- H7
- Diameter ø (d3)
- 47 mm
- Coolant feed
- No
- Tolerance b1 (tol. b1)
- k11
- Tolerance d1 (tol. d1)
- js16
- Surface
- Bright
- Thickness (b1)
- 20 mm
- Shank type
- Bore
- Standard
- DIN 885-A
- Tool material
- HSS-E
- Brand PHANTOM
- EAN 8716563380610
- Supplier number PHANTOM 382101220
