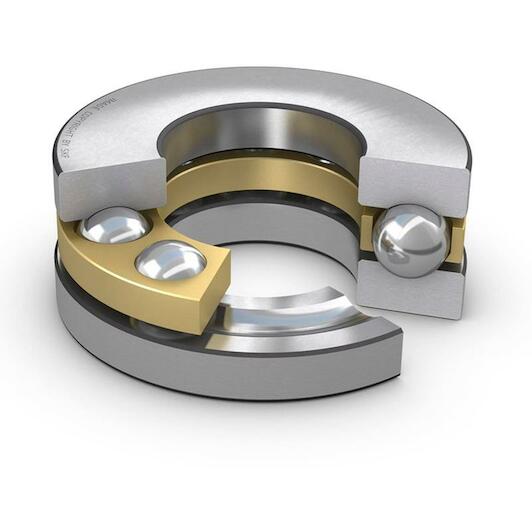

SKF 51336 M ball roller bearing single acting 180x300 mm

Supplier number: SKF 51336 M | EAN 7316570079906
Recommended Retail Price €7,656.54
3,790.60 tax incl.
€3,132.73 excl. VAT (incl. all environmental contributions)
On order: delivered from 10/10/2026

  • Ordered before 20:00 - delivered as of 10/10/2026
  • Free shipping
  • Delivery by DHL


€3,790.60
tax incl.

Product information

Key features according to our expert

  • Inner diameter: 180 mm
  • Width: 95 mm
  • Number of rows: 1
  • Material (cage): Brass (solid)
  • Outer diameter: 300 mm

Product description

  • Single direction thrust ball bearings can accommodate axial loads in one direction. They must not be subjected to any radial load. Their separable components facilitate mounting/dismounting and maintenance inspections. Many of the components are interchangeable. The shaft washers have a ground bore that enables an interference fit.

Avantages

  • Separable design facilitates mounting/dismounting and maintenance inspections
  • Interchangeable components
  • Ground bore of shaft washers enable interference fit

Documents

All Features

Inner diameter
180 mm
Width
95 mm
Number of rows
1
Material (cage)
Brass (solid)
Outer diameter
300 mm
Bore diameter
180 mm
Cage
Machined metal
Housing washer type
Flat
Reference speed
750 r/min
Basic static load rating
2,000 kN
Tolerance class
Normal
Limiting speed
1,100 r/min
Axial load capability
Single-direction
Coating
Without
Basic dynamic load rating
520 kN
Thickness
95 mm
Outside diameter
300 mm
Material, bearing
Bearing steel
  • Brand SKF
  • EAN 7316570079906
  • Supplier number SKF 51336 M
