SKF

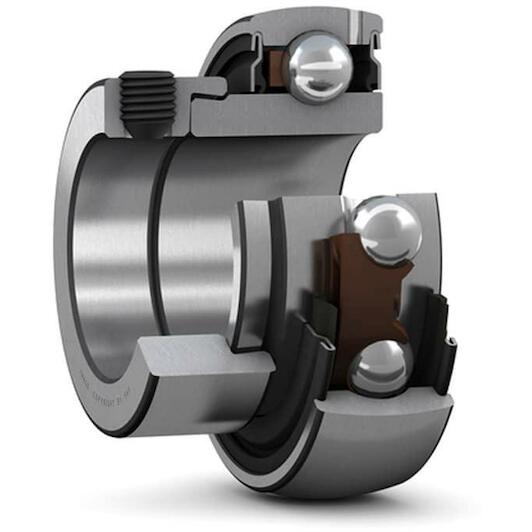

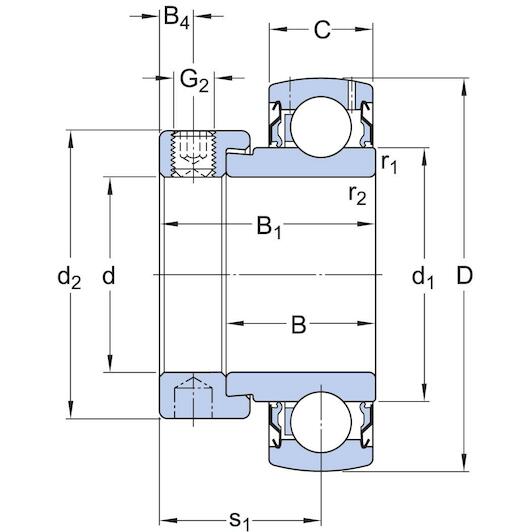

SKF YET 207-106 Y insert bearing cylindrical with eccentric ring for inch shaft, 34.9 x 72 mm

This article is not available

Product description:

  • Self-aligning snap ring bearing for normal conditions
  • Fixation on shaft by means of eccentric ring
  • Spherical outer ring with lubrication holes and inner ring extended at one end
Key features according to our expert
  • Inner diameter: 34,925 mm
  • Width: 25,4 mm
  • Material (bearing): Steel
  • Material (cage): Plastic
  • High temperature: No
  • Bore type: Cylindrical
  • Inner ring extension: On one side
  • Outer diameter: 72 mm
Specifications / All features
  • Brand: SKF
  • EAN: 7316576617089
  • Supplier number: SKF YET 207-106
Inner diameter
34,925 mm
Width
25,4 mm
Material (bearing)
Steel
Material (cage)
Plastic
High temperature
No
Bore type
Cylindrical
Inner ring extension
On one side
Outer diameter
72 mm
Lubricant
Grease
Retaining feature, inner ring
Eccentric collar
Basic static load rating
15.3 kN
Relubrication feature
With
Cage
Non-metallic
Rubber seating ring
Without
Width, outer ring
19 mm
Sealing type
Contact, standard
Outer ring type
Spherical
Material, bearing
Bearing steel
Sealing
Seal on both sides
Limiting speed
5,300 r/min
Note
Limiting speed with shaft tolerance h6
Width, total
38.9 mm
Width, inner ring
25.4 mm
Bore diameter
34.925 mm
Basic dynamic load rating
25.5 kN
Coating
Without
Outside diameter
72 mm
Rolling elements
Balls
